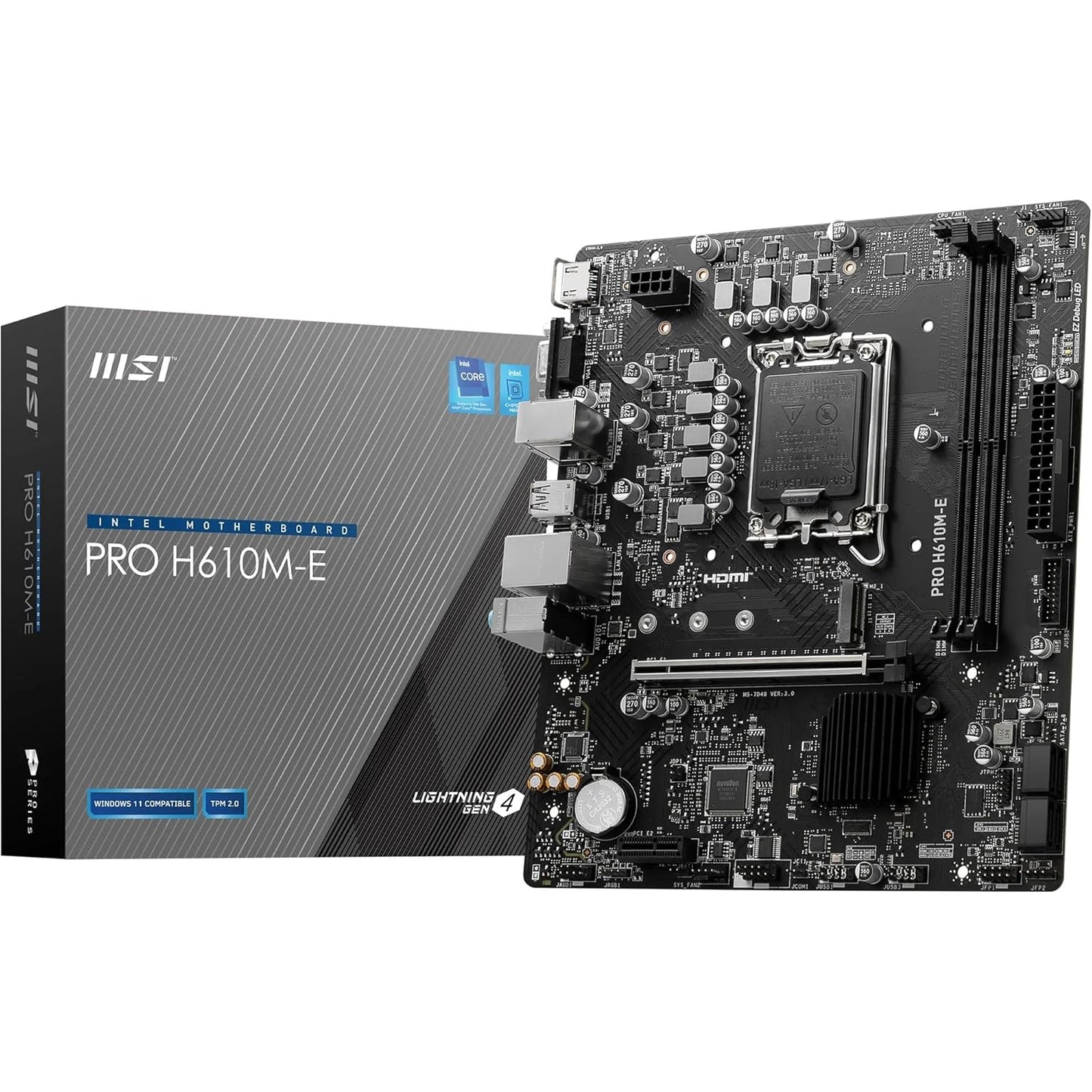

MSI PRO H610M-E Motherboard, LGA 1700 Socket, DDR4 Memory

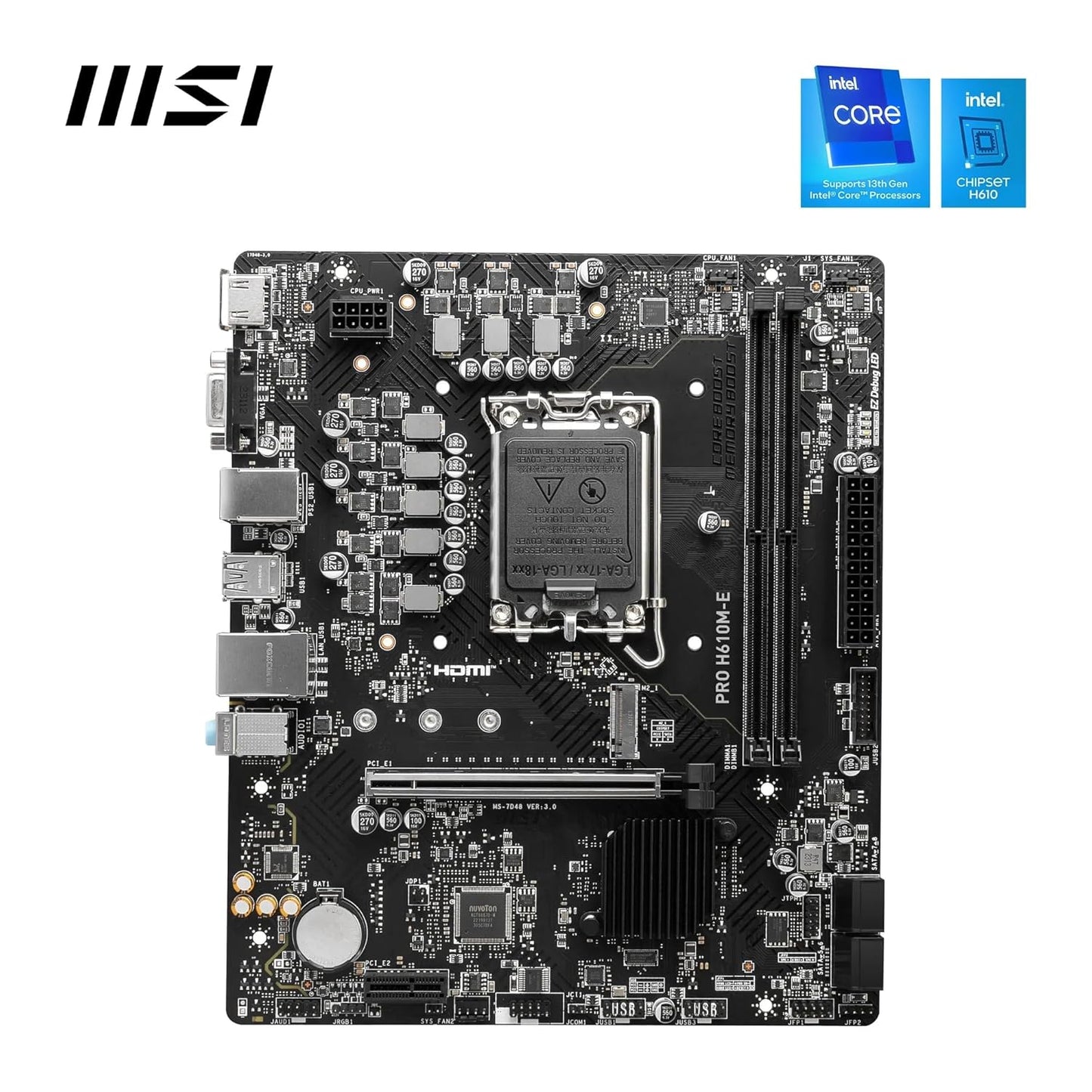

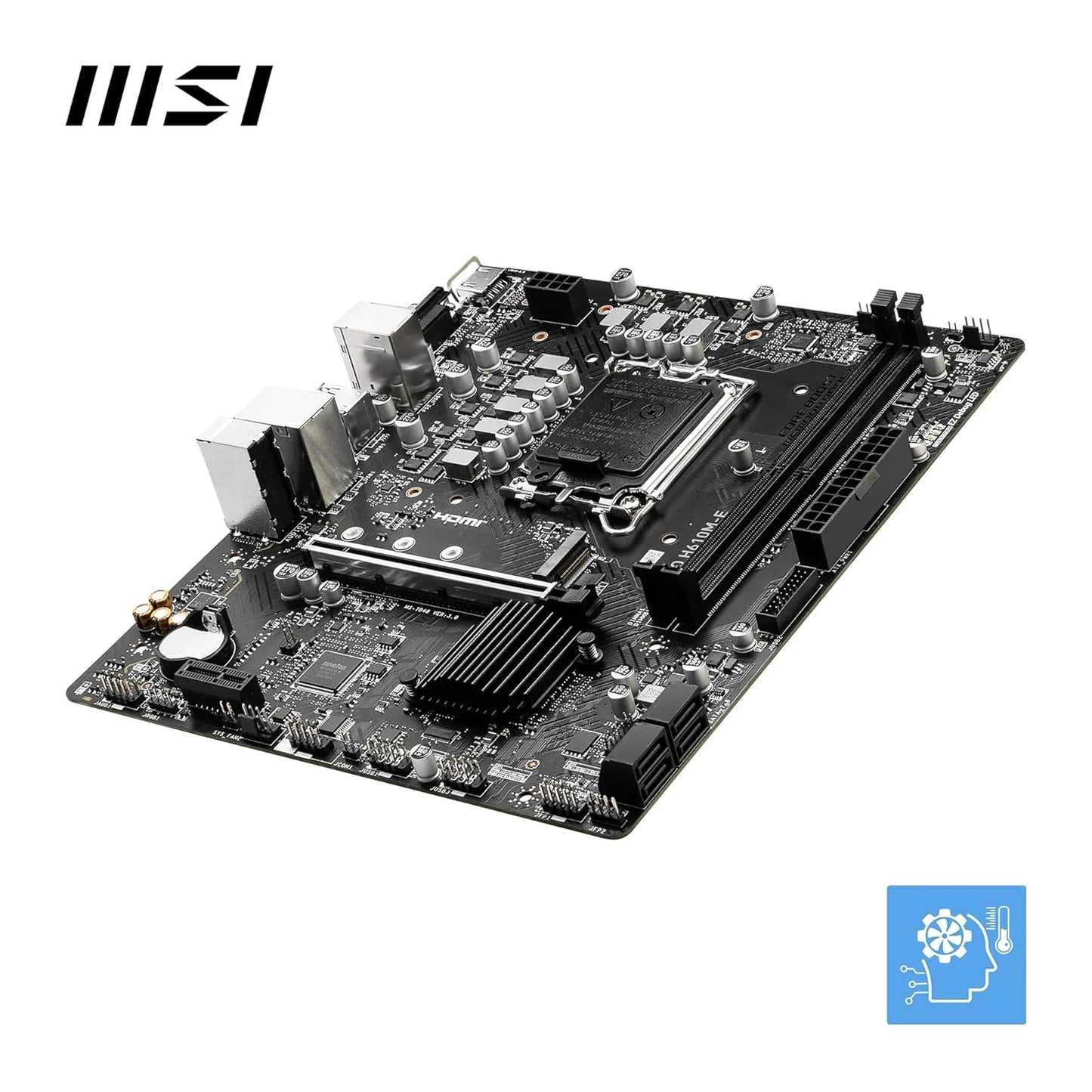

MSI PRO H610M-E DDR4 is a Micro-ATX motherboard designed for Intel Core 14th, 13th, and 12th Gen Core processors on the LGA 1700 socket. It offers essential features such as DDR4 memory support, PCIe 4.0 expansion, and a reliable power delivery system, making it suitable for budget-conscious users and business applications.

Key Specifications:

• Socket: LGA 1700

• Form Factor: Micro-ATX

• Chipset: Intel H610

• Memory Support:

  • 2 x DDR4 DIMM slots

  • Up to 64GB RAM capacity

  • Supports DDR4 speeds up to 3200 MHz (OC)

• Storage Support:

  • 1 x M.2 slot (PCIe 3.0)

  • 4 x SATA 6Gb/s ports

• Expansion Slots:

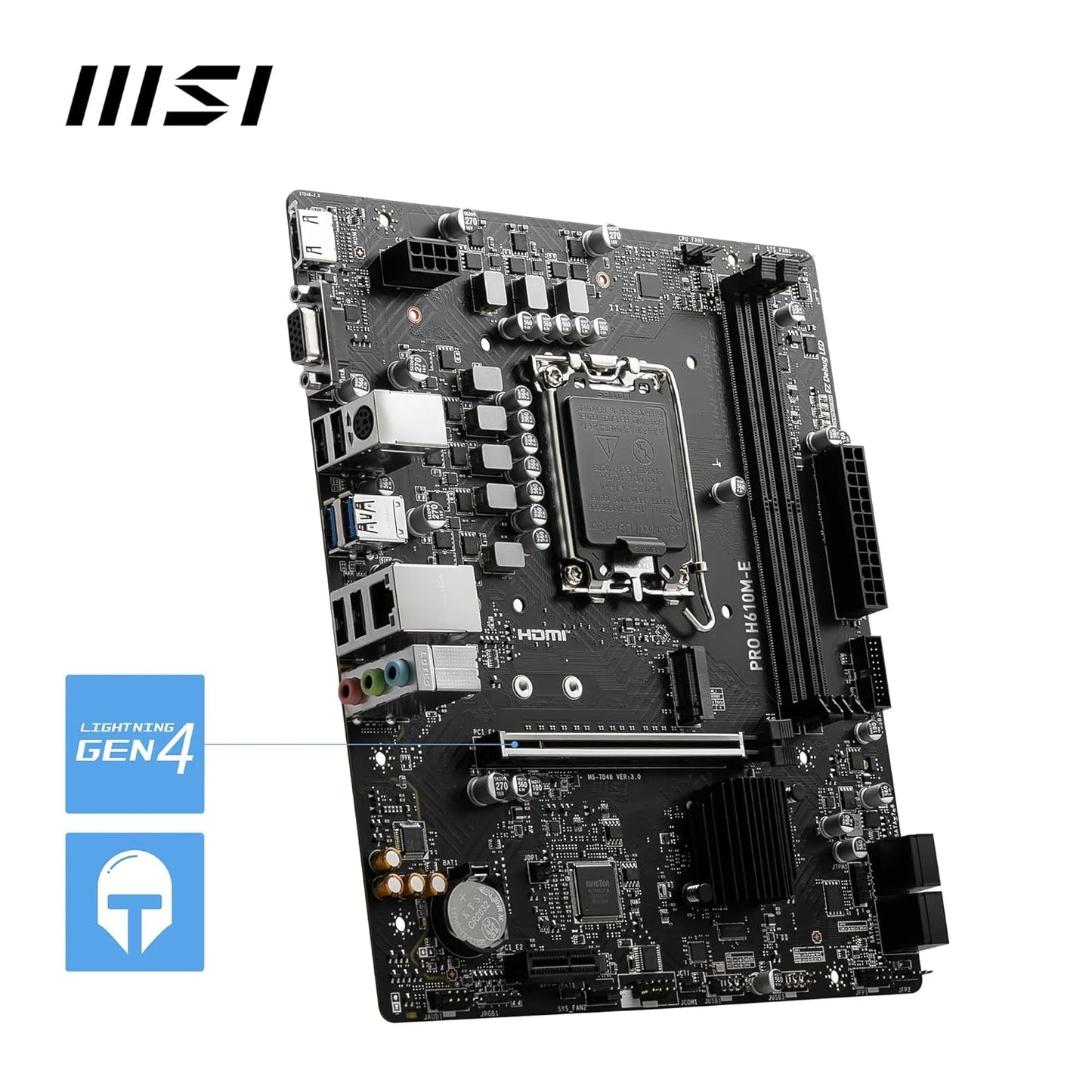

  • 1 x PCIe 4.0 slot

  • 1 x PCIe 3.0 slot

• Networking:

  • Realtek RTL8111H 1Gbps Gigabit LAN

• USB Ports:

  • 1 x USB 3.2 Gen 1 5Gbps supports additional 2 USB 3.2 Gen 1 5Gbps ports

  • 2 x USB 2.0 Type-A supports additional 4 USB 2.0 ports

• Audio: Realtek 7.1-Channel High Definition Audio

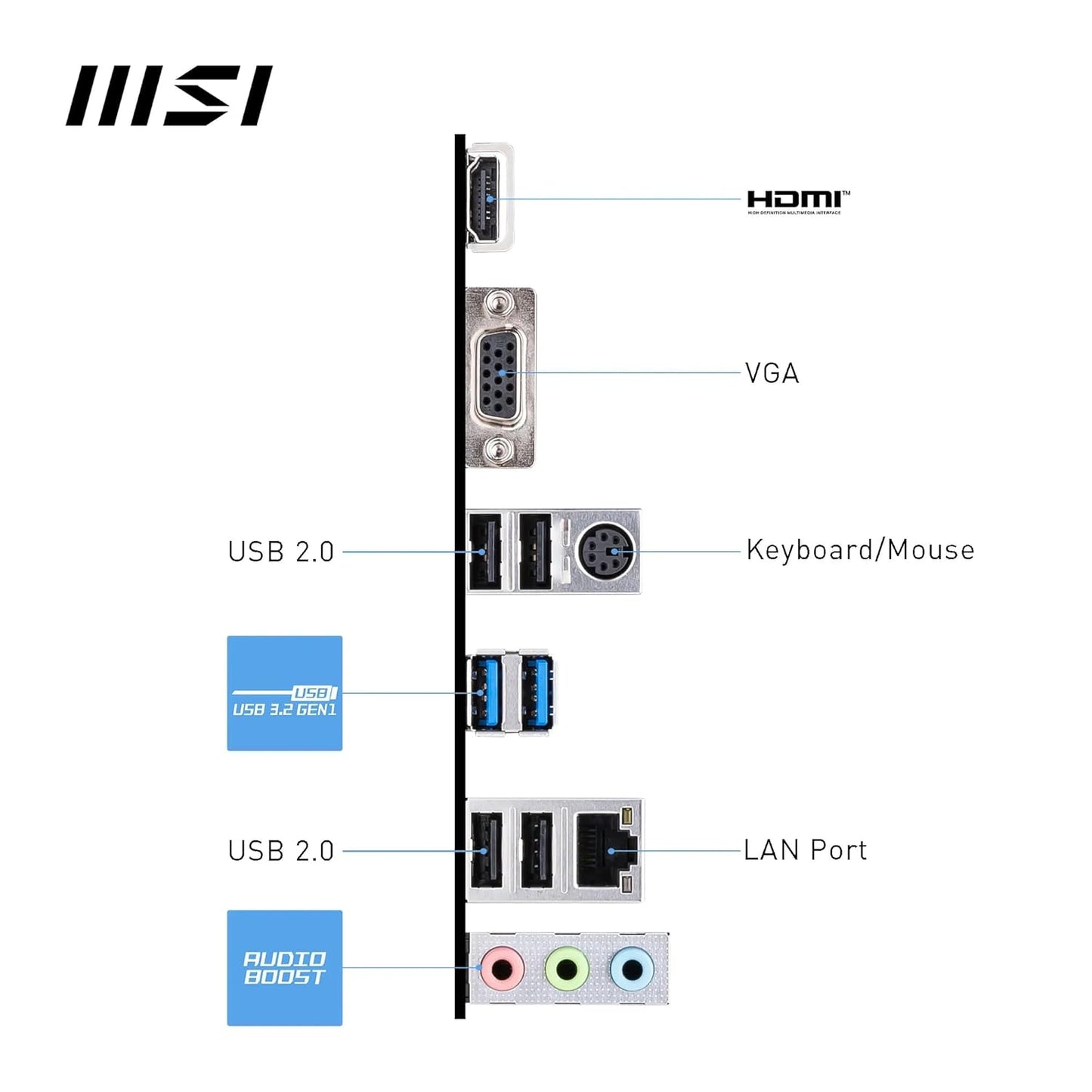

• Display Outputs:

  • 1 x HDMI
  • 1 x VGA

Key Features:

• Core Boost: Premium layout and digital power design to support more cores and provide better performance.

• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability, and compatibility.

• PCIe Steel Armor: Protects VGA cards against bending and EMI for better performance, stability, and strength.

• EZ Debug LED: Provides an easy way to troubleshoot issues.

• Audio Boost: Delivers studio-grade sound quality for an immersive audio experience.

• Frozr AI Cooling: Detects CPU and GPU temperatures and automatically adjusts system fan duty to a proper value.
