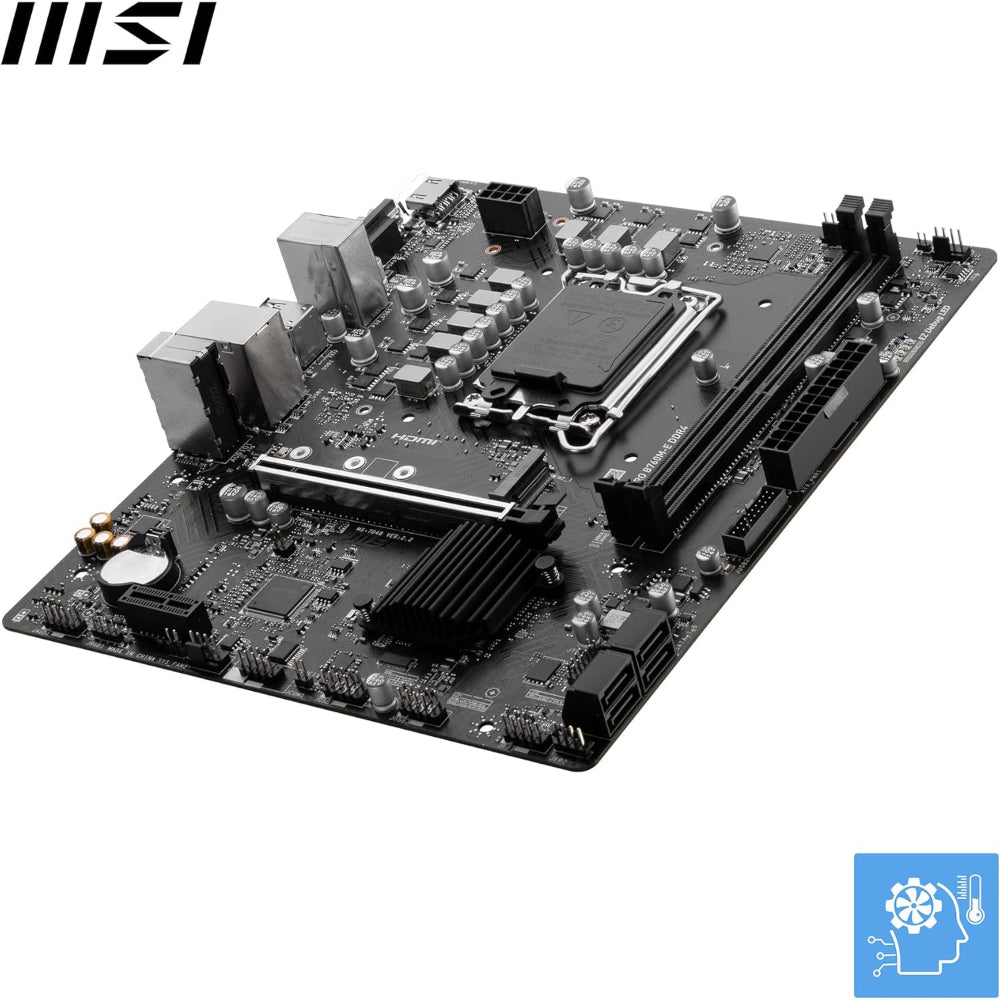

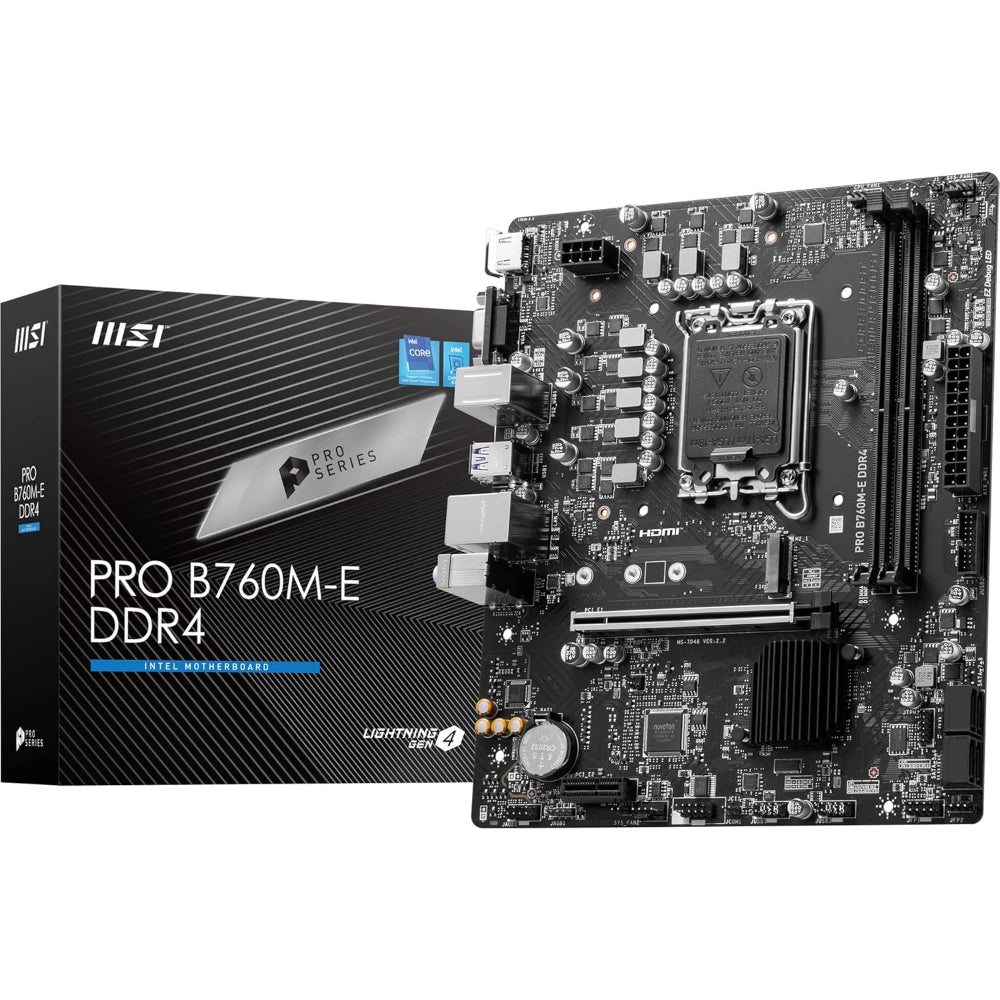

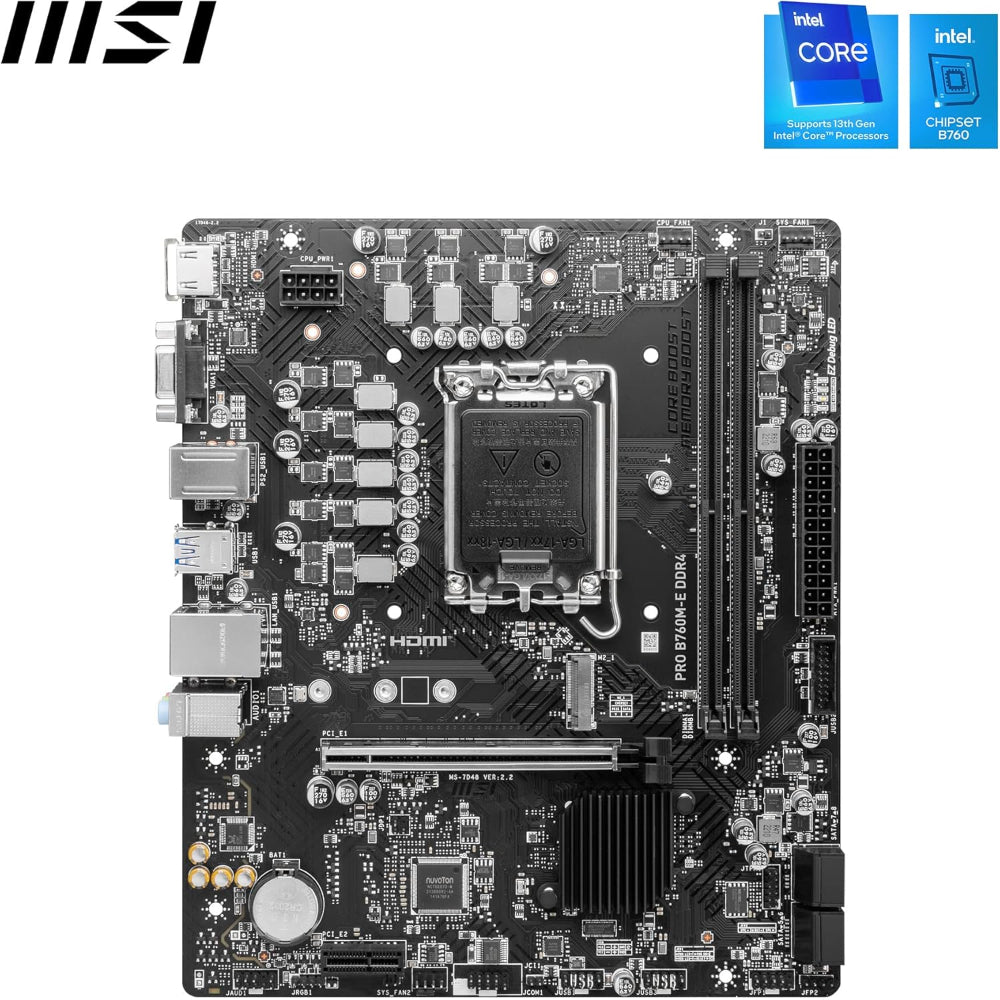

MSI PRO B760M-E Motherboard, LGA 1700 Socket, DDR4 Memory

MSI PRO B760M-E DDR4 is a Micro-ATX motherboard designed for Intel Core 14th, 13th, and 12th Gen Core processors on the LGA 1700 socket. It offers essential features such as DDR4 memory support, PCIe 4.0 expansion, and a reliable power delivery system, making it suitable for budget-conscious users and business applications.

Key Specifications:

• Socket: LGA 1700

• Form Factor: Micro-ATX

• Chipset: Intel B760

• Memory Support:

  • 2 x DDR4 DIMM slots

  • Up to 64GB RAM capacity

  • Supports DDR4 speeds up to 4800 MHz (OC)

• Storage Support:

  • 1 x M.2 slot (PCIe 4.0)

  • 4 x SATA 6Gb/s ports

• Expansion Slots:

  • 1 x PCIe 4.0

  • 1 x PCIe 3.0

• Networking:

  • Realtek RTL8111H Gigabit LAN

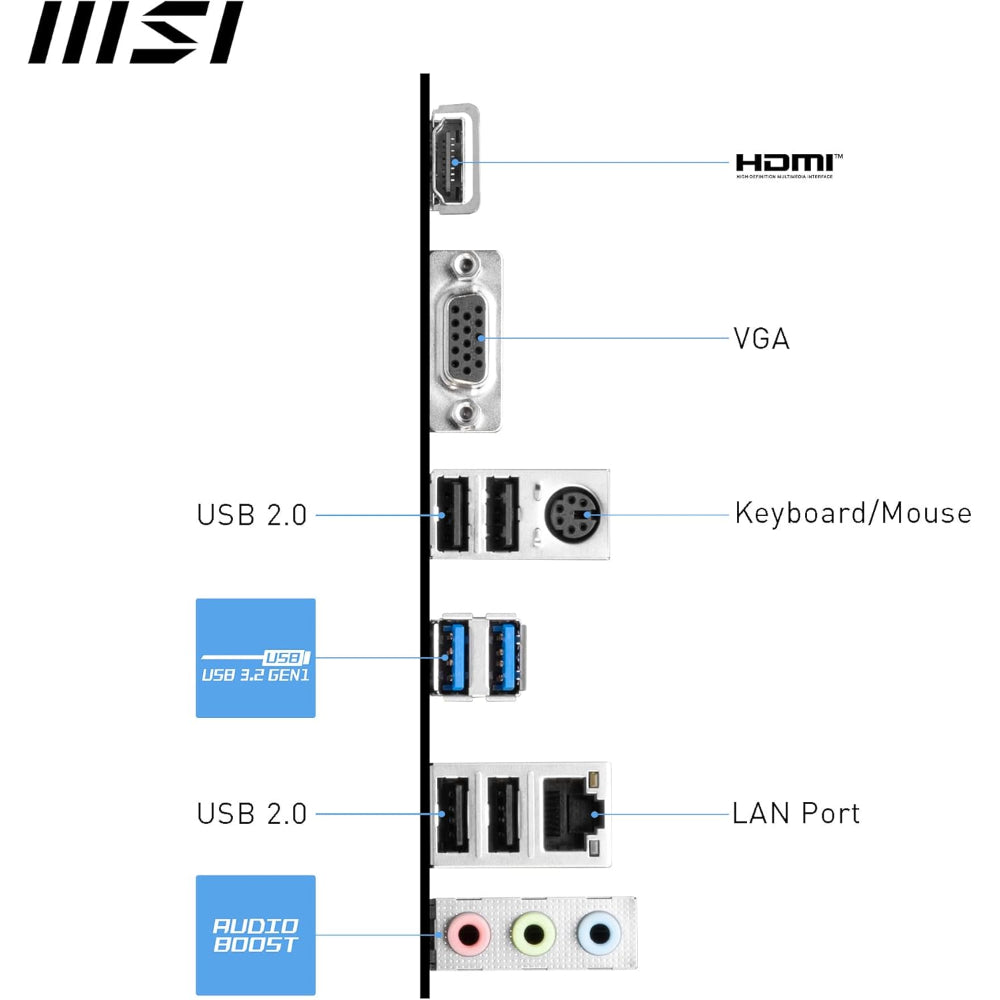

• USB Ports:

  • Rear USB Ports:

    • 2 x USB 5Gbps Type-A
    • 4 x USB 2.0



  • Front USB Ports:

    • 2 x USB 5Gbps Type-A
    • 4 x USB 2.0



• Audio: Realtek ALC897 7.1-Channel High Definition Audio

• Display Outputs:

  • 1 x HDMI
  • 1 x VGA

Key Features:

• Core Boost: Optimized power design for stable and efficient performance.

• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability, and compatibility.

• PCIe Steel Armor: Protects VGA cards against bending and EMI for better performance, stability, and strength.

• EZ Debug LED: Provides an easy way to troubleshoot issues.

• Audio Boost: Delivers studio-grade sound quality for an immersive audio experience.

• Frozr AI Cooling: Detects CPU and GPU temperatures and automatically adjusts system fan duty to a proper value.
