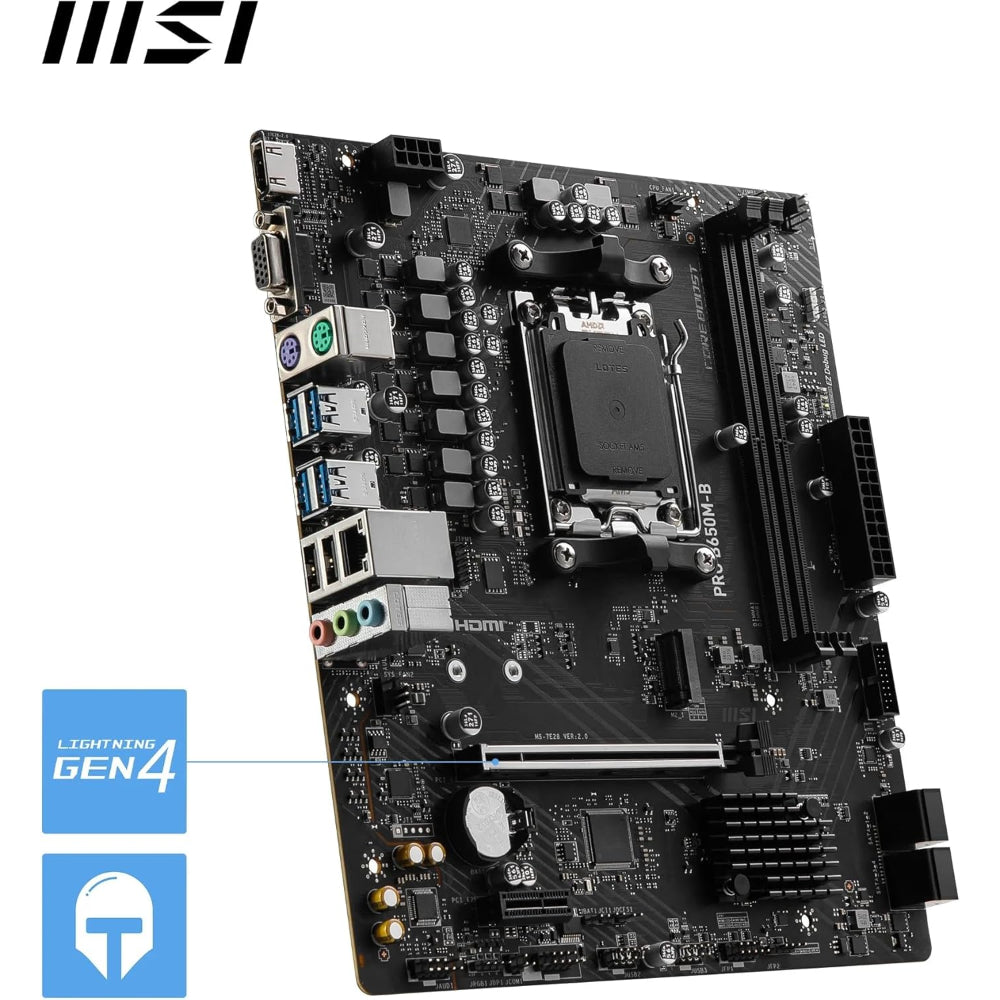

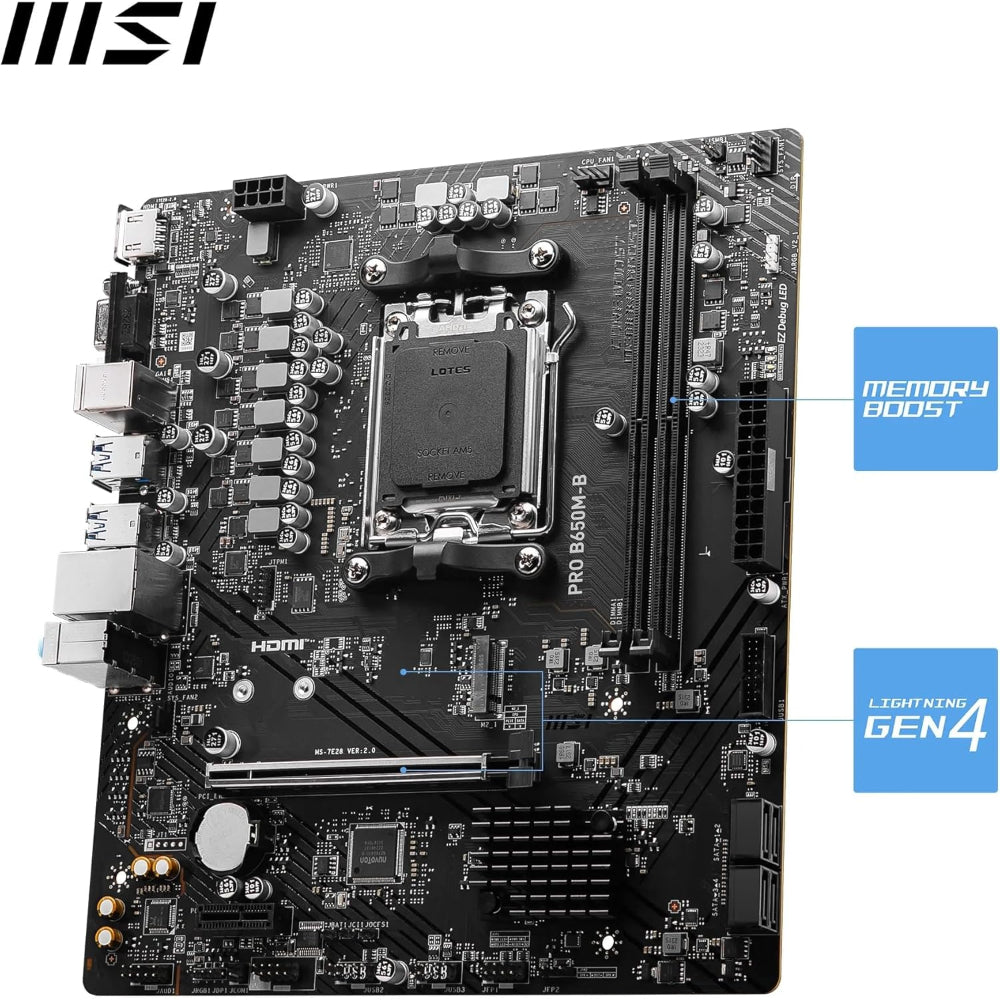

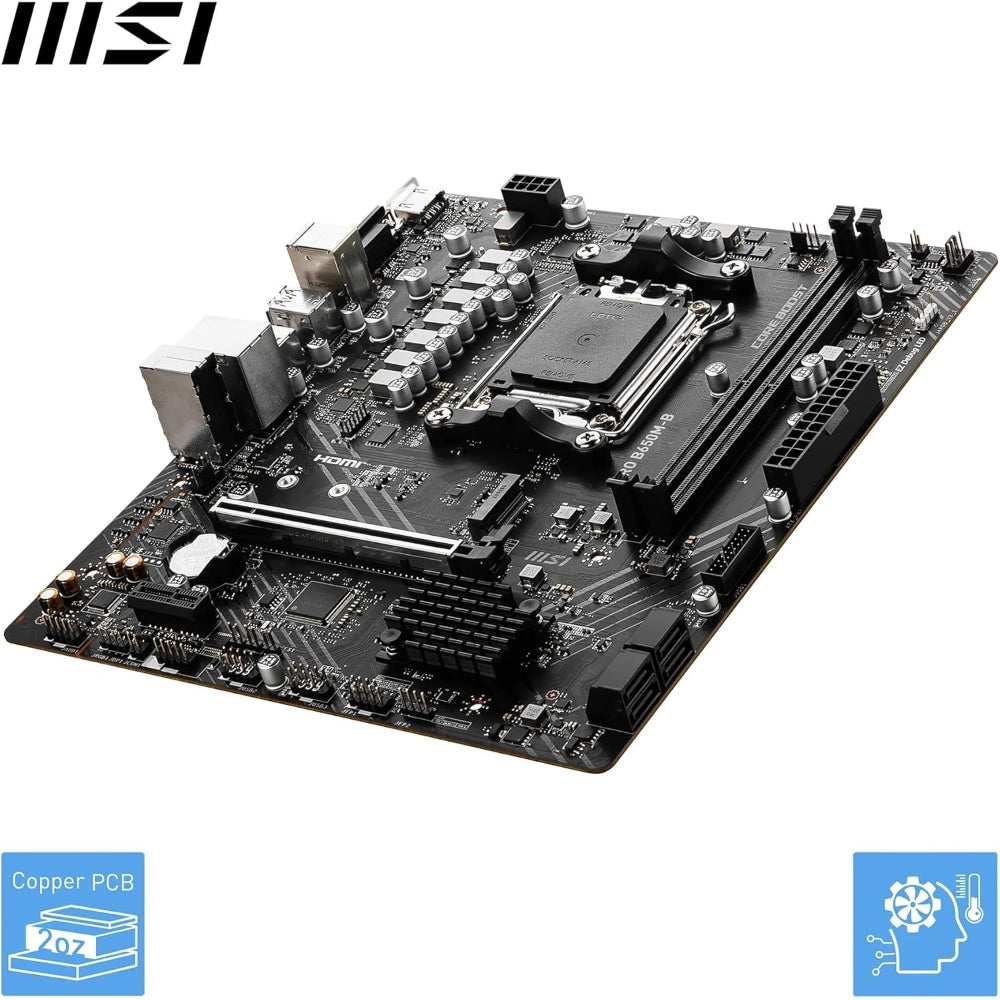

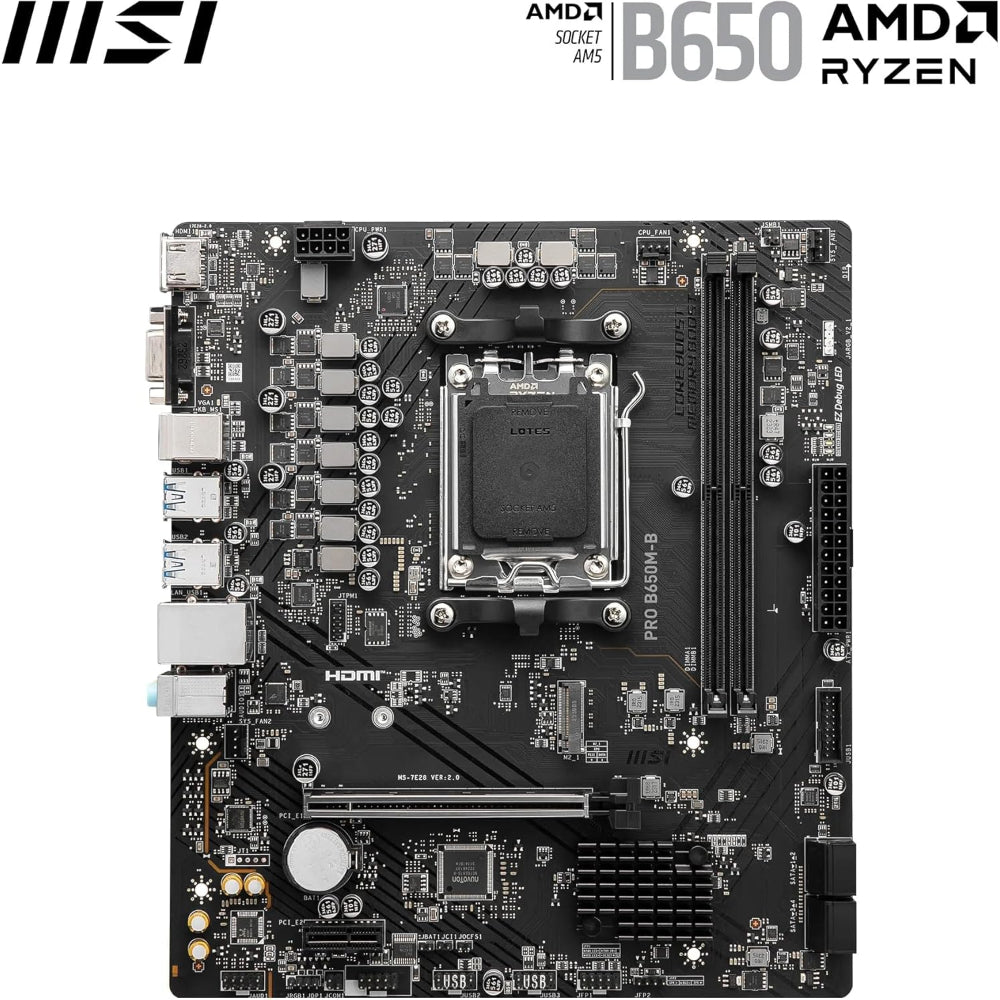

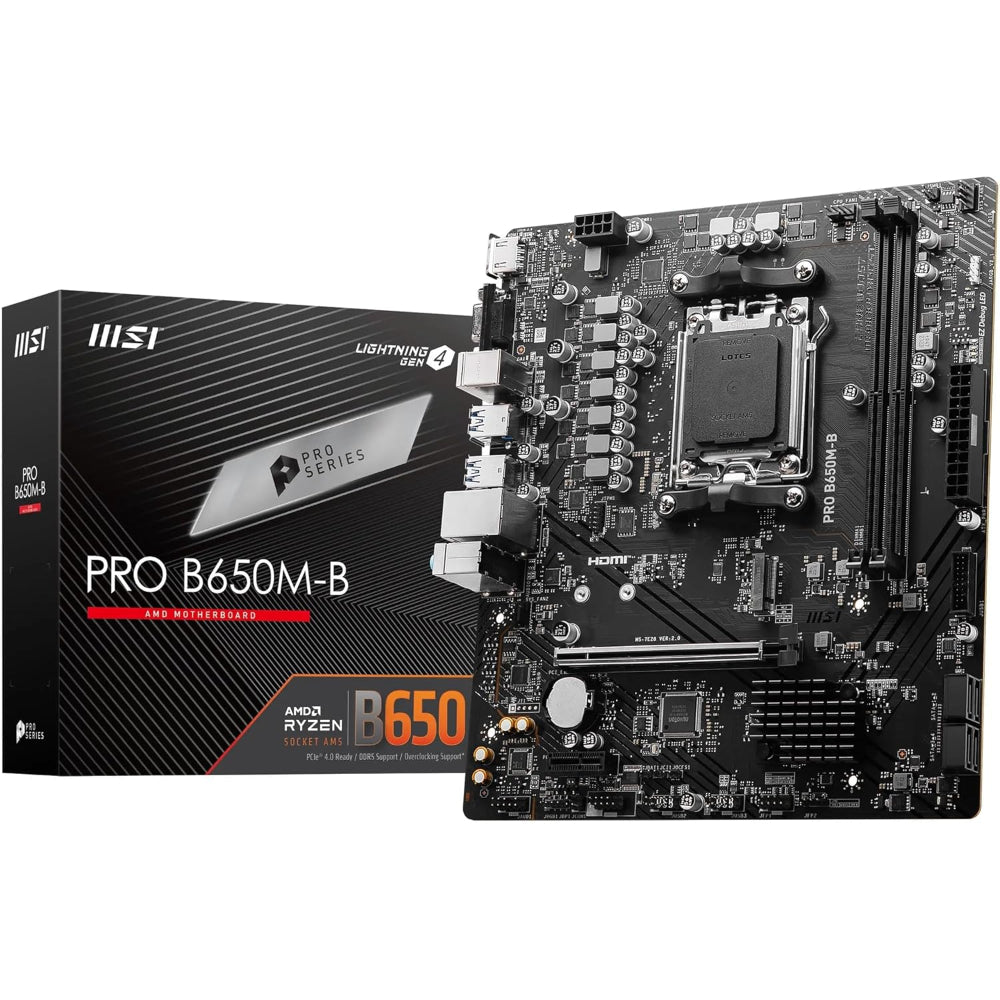

MSI PRO B650M-B Motherboard, AM5 Socket, DDR5 Memory

MSI PRO B650M-B is a micro-ATX motherboard designed for AMD AM5 socket, supporting Ryzen 9000, 8000, and 7000 Series Desktop Processors. It offers a solid foundation for professional and everyday computing needs.

Key Specifications:

• CPU Support: AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.

• Chipset: AMD B650.

• Memory Support: Two DDR5 DIMM slots, supporting up to 128 GB of system memory with speeds up to 6800 MT/s (OC).

• Expansion Slots:

  • 1 x PCIe 4.0

  • 1 x PCIe 3.0

• Storage Options:

  • 1 x M.2 slot supporting PCIe 4.0

  • 4 x SATA 6Gb/s ports.

• Networking: Realtek 2.5Gb Ethernet.

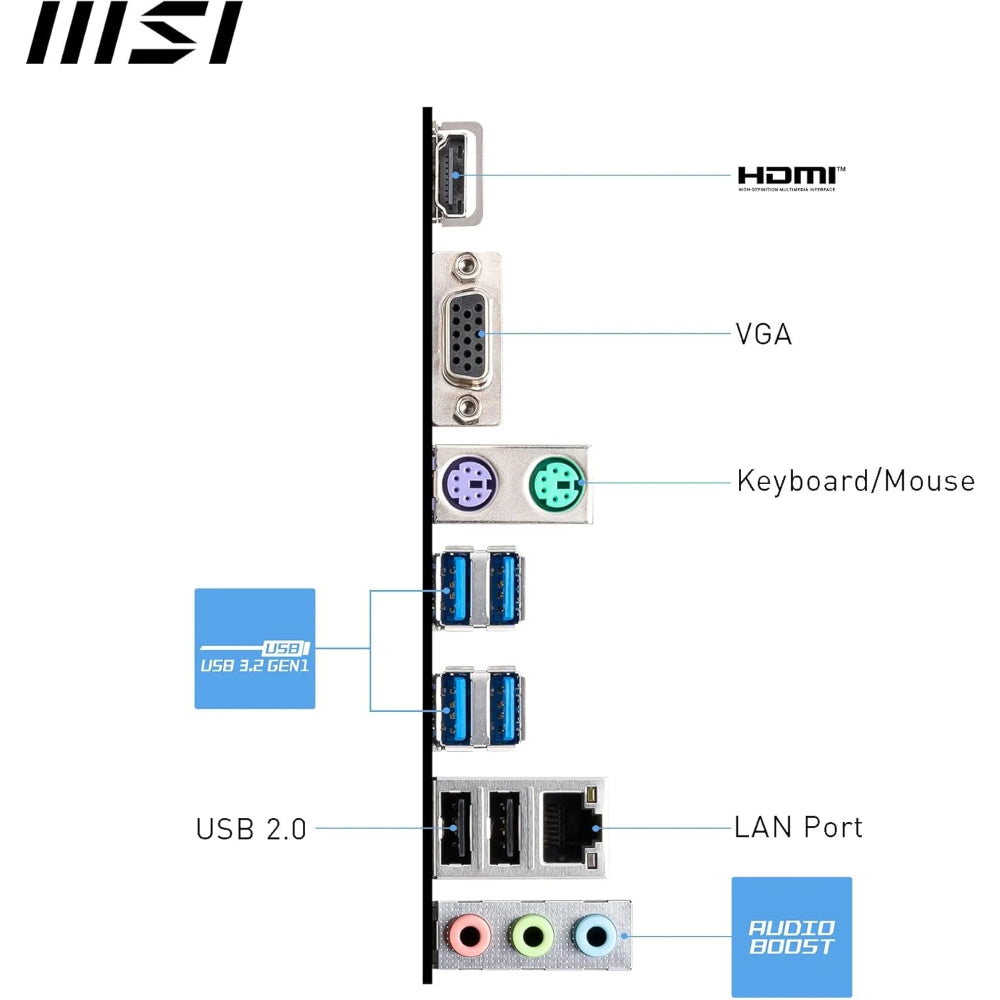

• USB Ports:

  • Rear USB:

    • 4 × USB 5Gbps Type-A.

    • 2 × USB 2.0.

  • Front USB:

    • 2 × USB 5Gbps Type-A.

    • 4 × USB 2.0.

• Display Outputs:

  • 1 x HDMI port

  • 1 x VGA port

• Audio: Realtek ALC897 Codec, 7.1-Channel High Definition Audio.

Key Features:

• Core Boost Technology: Optimized power design for precise and undistorted power delivery to the CPU, supporting multi-core processors and enhancing overclocking capabilities.

• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability, and compatibility.

• PCIe 4.0 Support: The PCIe 4.0 offers robust support for the latest graphics cards, providing high-speed data transfer.

• Comprehensive Cooling Solutions: Equipped with a chipset heatsink designed to reduce dust and noise while maintaining high efficiency.

• High-Speed Connectivity: Includes 2.5G LAN for fast and reliable network performance, suitable for professional and multimedia use.

• DDR5 Memory Support: Supports the latest DDR5 memory modules with speeds up to 6800 MT/s (OC), enhancing overall system performance.

• DIY-Friendly Design: Incorporates features like EZ Debug LED for troubleshooting and Steel Armor for enhanced PCIe slot durability.
