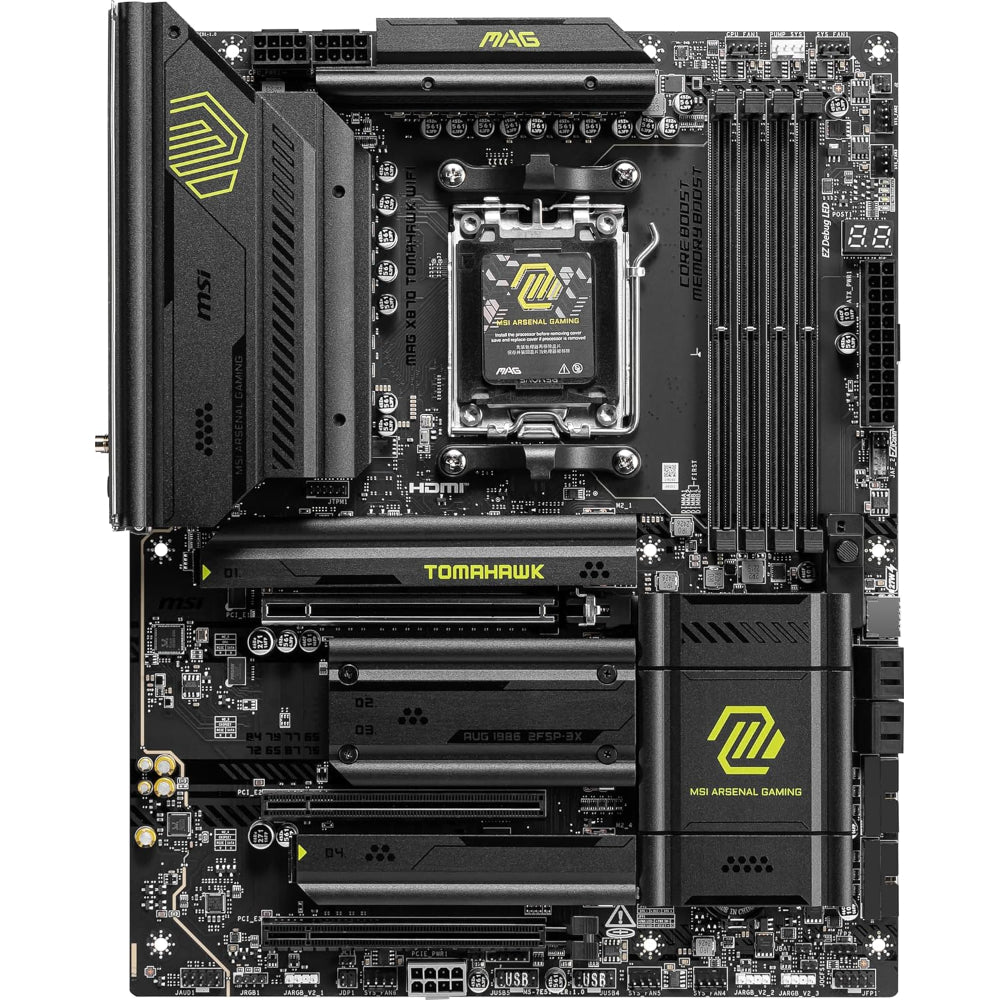

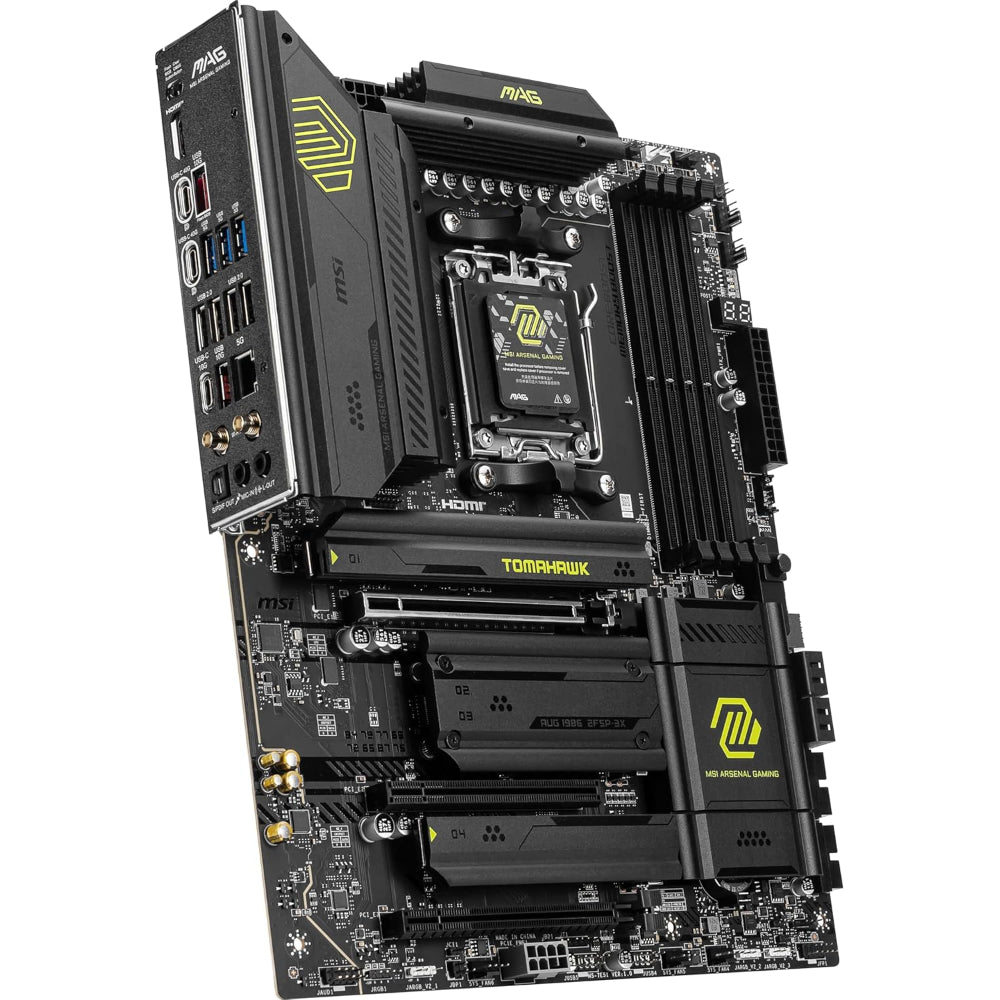

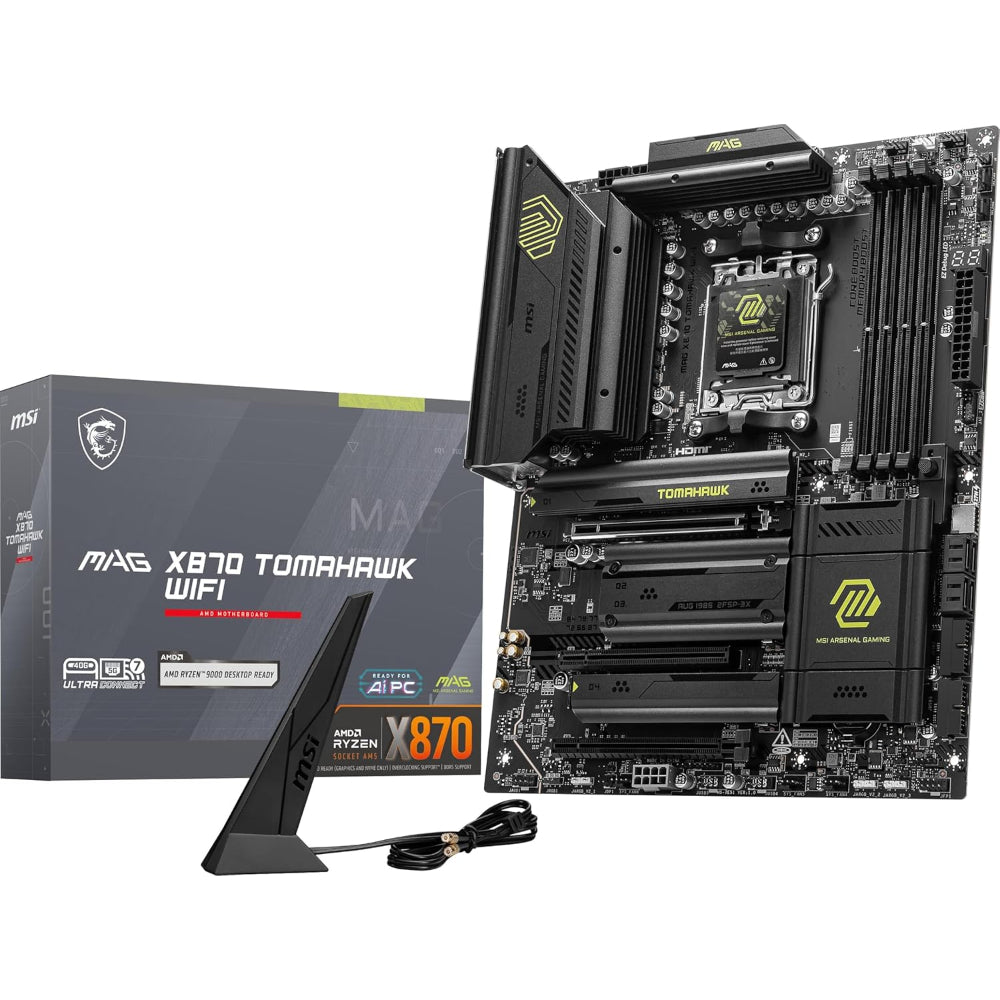

MSI MAG X870 Tomahawk WiFi 7 Motherboard, AM5 Socket, DDR5 Memory

MSI MAG X870 Tomahawk WIFI is a high-performance ATX motherboard designed for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket. It combines cutting-edge connectivity, robust power delivery, and advanced cooling solutions, making it an ideal choice for gamers and PC enthusiasts seeking top-tier performance and future-proof features.

Key Specifications:

• Socket: AM5

• Form Factor: ATX

• Chipset: AMD X870

• Memory Support:

  • 4 x DDR5 DIMM slots

  • Up to 256GB RAM capacity

  • Supports DDR5 speeds up to 8400+ MT/s (OC)

• Storage Support:

  • 2 x M.2 Gen5 slots

  • 2 x M.2 Gen4 slots

  • 4 x SATA 6Gb/s ports

• Expansion Slots:

  • 1 x PCIe 5.0 slot

  • 2 x PCIe 4.0 slots

• Networking:

  • Realtek 5Gb Ethernet LAN

  • Wi-Fi 7 (802.11be)

  • Bluetooth 5.4

• USB Ports:

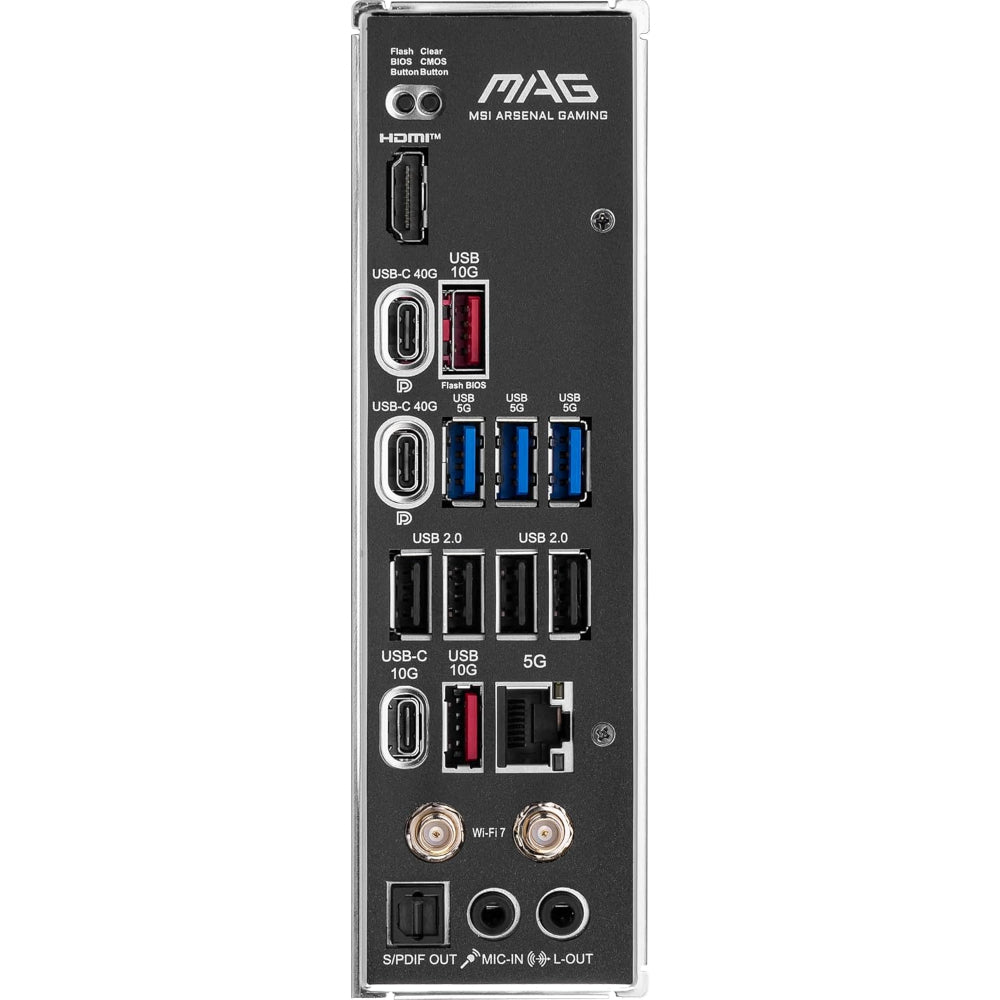

  • Rear USB Ports:

    • 2 x USB 40Gbps Type C
    • 2 x USB 10Gbps Type A
    • 1 x USB 10Gbps Type C
    • 3 x USB 5Gbps Type A
    • 4 x USB 2.0


  • Front USB Ports:

    • 1 x USB 20Gbps Type C
    • 4 x USB 5Gbps Type A
    • 4 x USB 2.0



• Audio: Realtek 7.1-Channel High Definition Audio

• Display Outputs:

  • 1 x HDMI port
  • 2 x Type-C DisplayPort

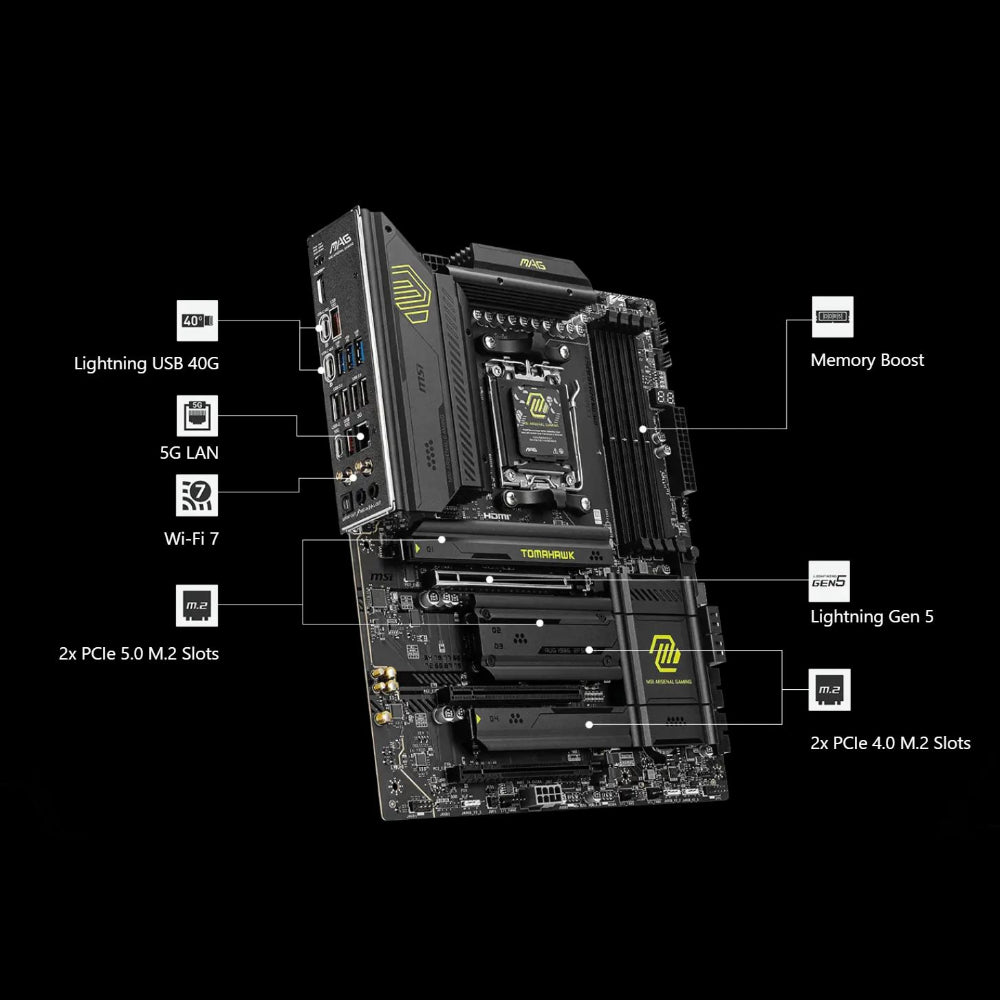

Key Features:

• Advanced Power Design: 14+2+1 Duet Rail Power System with 80A Smart Power Stages ensures stable power delivery for high-performance CPUs.

• Enhanced Cooling Solutions: Features Frozr Guard with extended heatsinks, 7W/mK MOSFET thermal pads, and EZ M.2 Shield Frozr II for optimal thermal performance.

• Next-Gen Connectivity: Equipped with Wi-Fi 7, 5G LAN, and USB4 Type-C for ultra-fast networking and data transfer.

• DIY-Friendly Design: Includes EZ M.2 Clip II, EZ PCIe Release, and EZ Antenna for simplified installation and upgrades.

• Audio Boost 5: Delivers studio-grade sound quality for an immersive gaming experience.

• Multi-GPU Support: Supports AMD CrossFireX for enhanced graphics performance.
