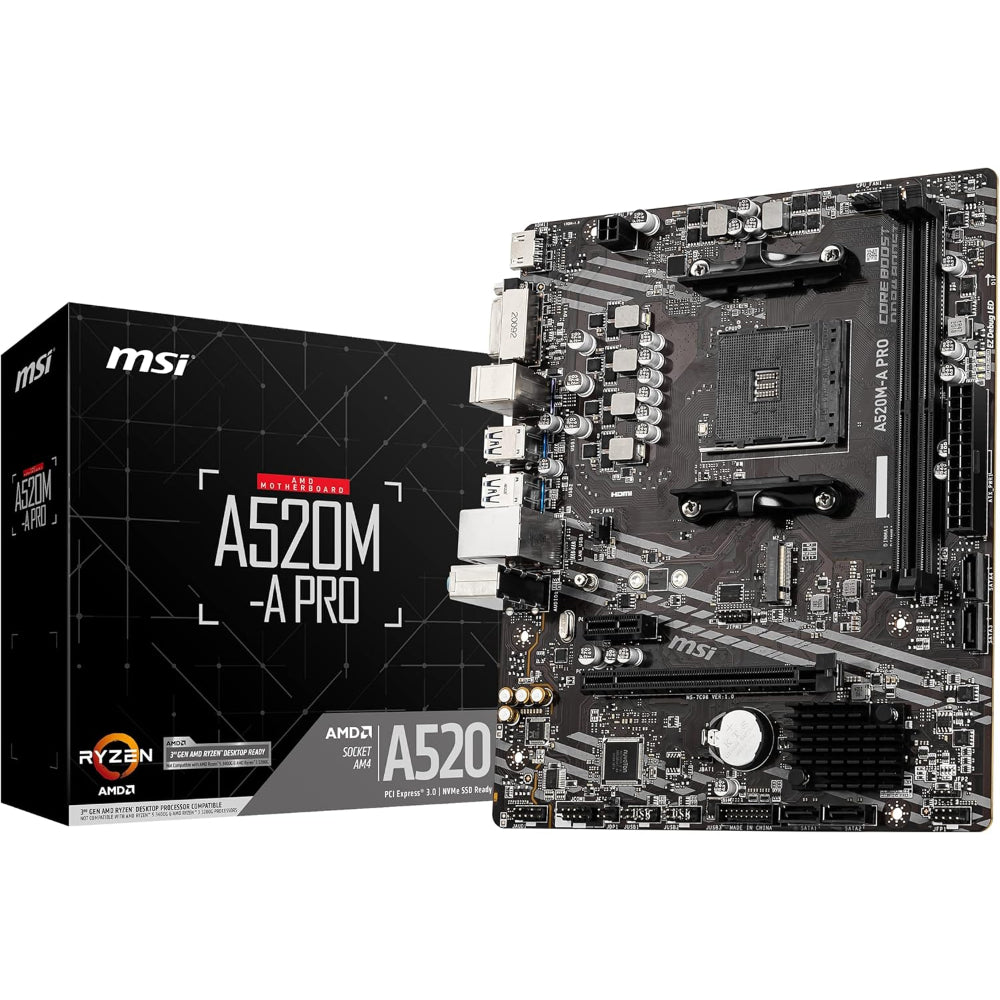

MSI A520M-A PRO Motherboard, AM4 Socket, DDR4 Memory

MSI A520M-A PRO motherboard offers a stable and budget-friendly platform for AMD Ryzen processors. Built on the AM4 socket and supporting DDR4 memory, this Micro ATX board is ideal for home users, students, and entry-level builders seeking reliable everyday performance without breaking the bank.

Key Specifications:

• Chipset: AMD A520

• CPU Socket: AM4 (Supports AMD Ryzen 3000, 4000G, and 5000 Series processors)

• Memory Support: 2 x DIMM DDR4 slots, up to 64GB

• Expansion Slots: 2 x PCIe 3.0

• Storage Interface:

  • 1 x M.2 (PCIe 3.0)

  • 4 x SATA 6Gb/s ports

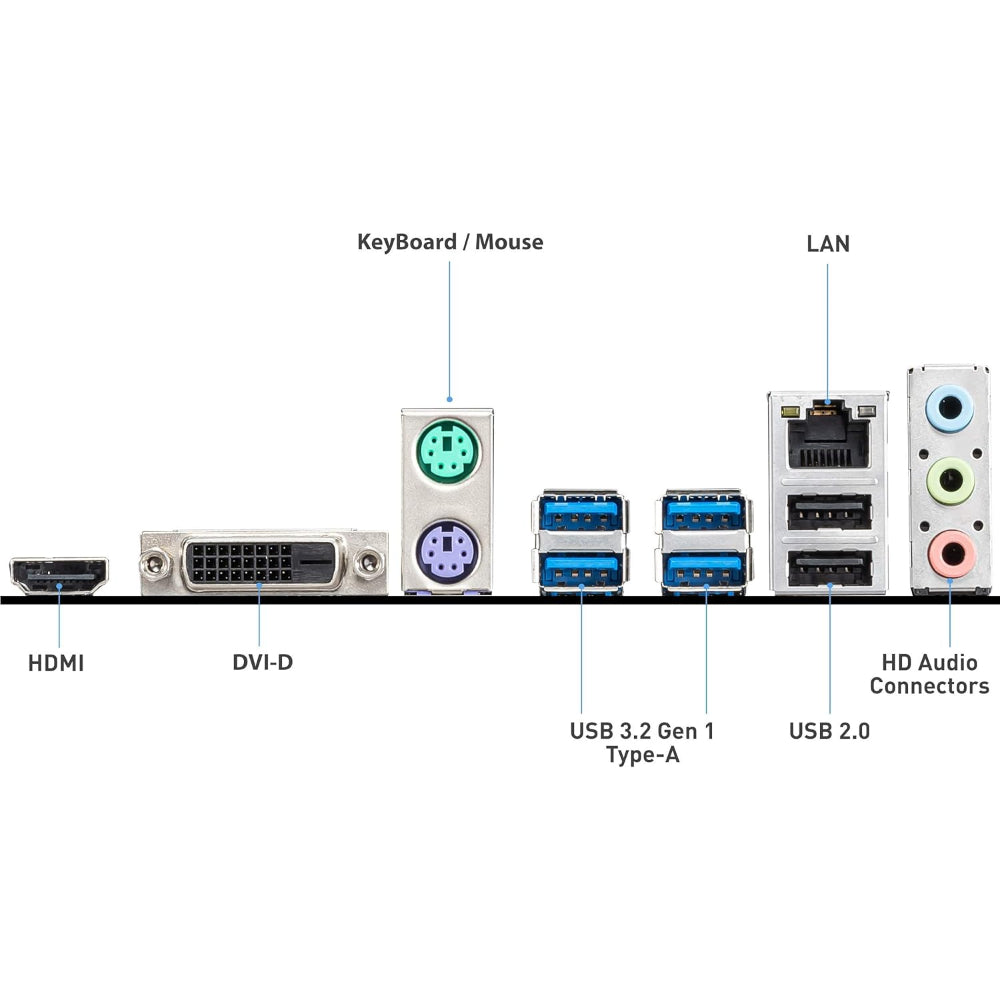

• USB Ports:

  • 2 x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
  • 6 x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
  • 4 x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel



• Networking: Realtek RTL8111H Gigabit LAN

• Audio: Realtek High Definition Audio

• Form Factor: Micro ATX

Key Features:

• AM4 Socket Ready: Compatible with a wide range of Ryzen processors for flexible builds.

• DDR4 Memory Support: Offers stable performance with broad RAM compatibility.

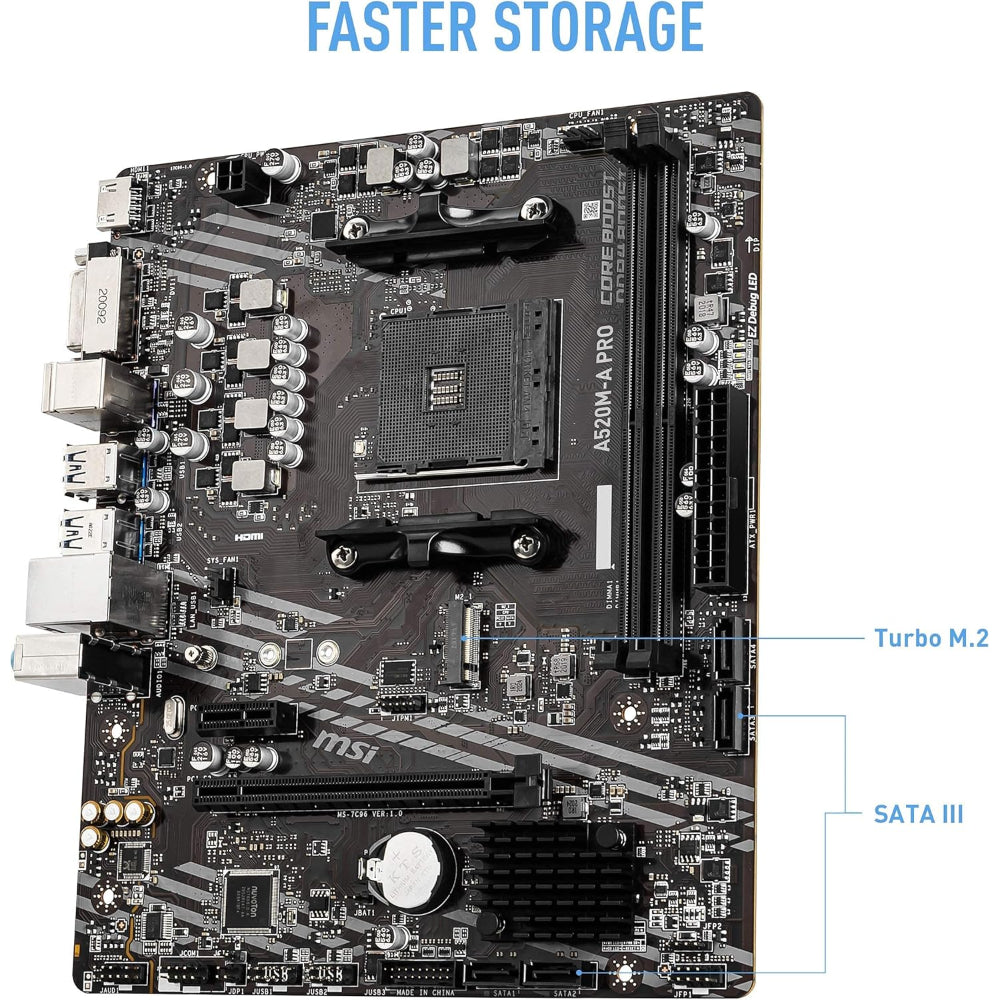

• M.2 SSD Slot: Enables high-speed NVMe storage for fast system responsiveness.

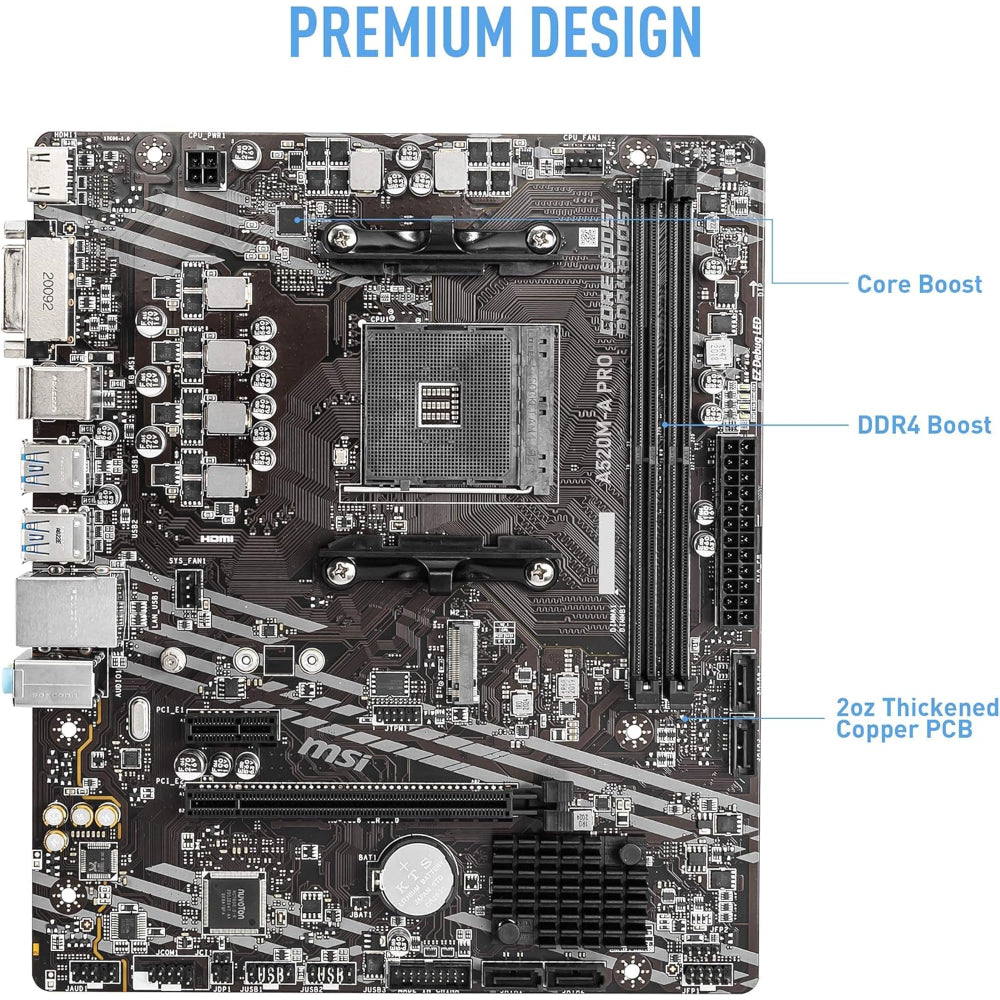

• Core Boost Technology: Optimized power delivery for multi-core CPUs.

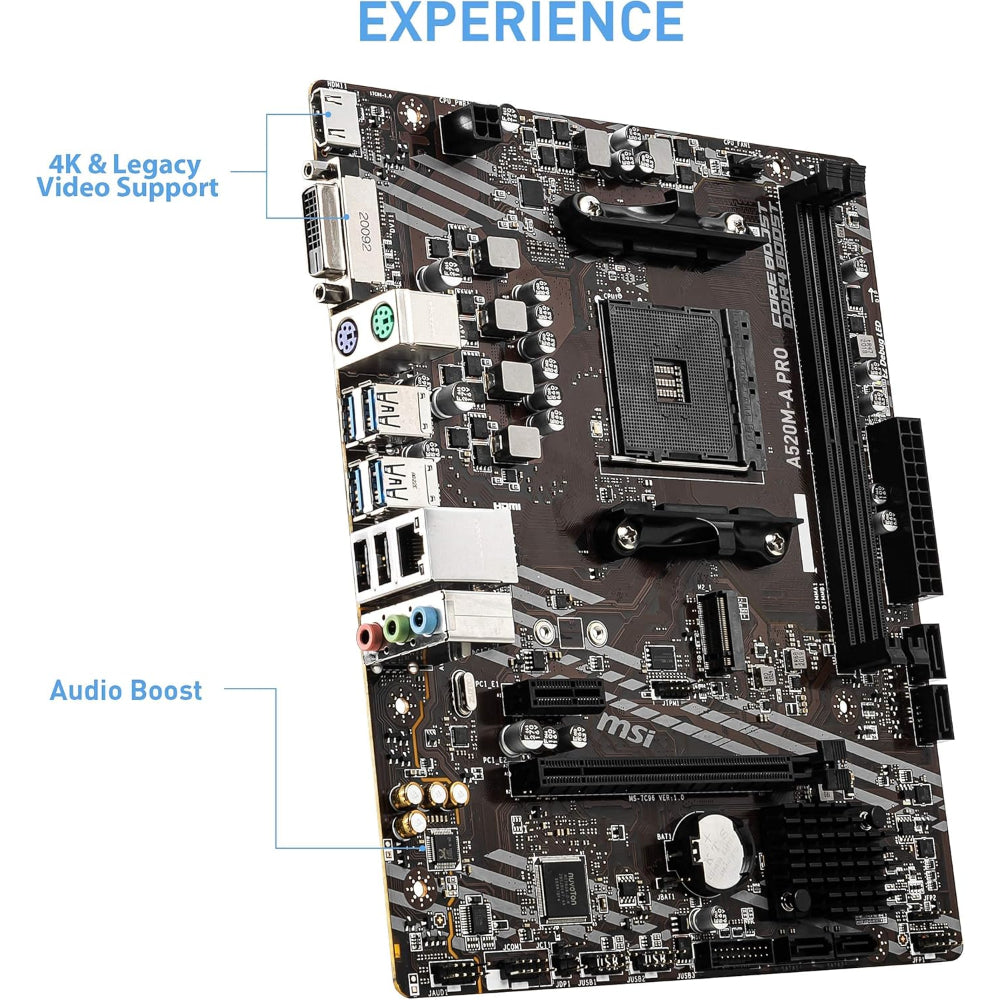

• Audio Boost: Enhances sound quality for clearer audio output.

• Steel Armor PCIe Slot: Protects the graphics slot from bending and EMI.

• Reliable Thermal Solution: Heatsinks and fan control features for consistent cooling.

• MSI PRO Series Quality: Built for durability, longevity, and stable operation.
