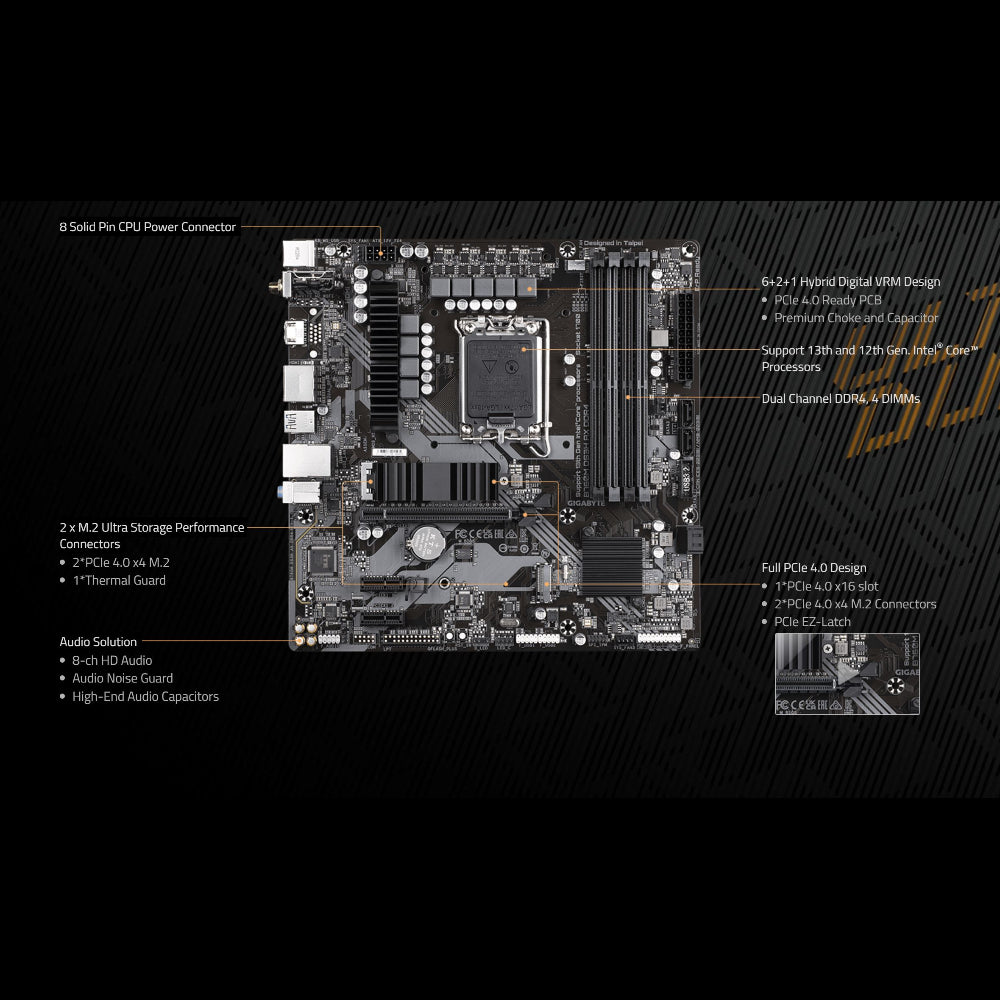

Gigabyte B760M DS3H AX WiFi 6E Motherboard, LGA 1700 Socket, DDR4 Memory

Gigabyte B760M DS3H AX DDR4 WIFI is a Micro-ATX motherboard designed for Intel Core 14th, 13th, and 12th Gen processors on the LGA 1700 socket. It offers a balance of performance and features, including DDR4 memory support, PCIe 4.0 expansion, Wi-Fi 6E connectivity, and a robust power delivery system, making it suitable for mainstream users and budget-conscious builders.

Key Specifications:

• Socket: LGA 1700

• Form Factor: Micro-ATX

• Chipset: Intel B760

• Memory Support:

  • 4 x DDR4 DIMM slots

  • Up to 128GB RAM capacity

  • Supports DDR4 speeds up to 5333 MT/s (OC)

• Storage Support:

  • 2 x M.2 slots (PCIe 4.0)

  • 4 x SATA 6Gb/s ports

• Expansion Slots:

  • 1 x PCIe 4.0 slot

  • 2 x PCIe 3.0 slot

• Networking:

  • Intel Wi-Fi 6E

  • 2.5Gb Ethernet (Realtek RTL8125BG)

  • Bluetooth 5.3

• USB Ports:

  • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

  • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

  • 2 x USB 2.0/1.1 ports on the back panel

  • 4 x USB 2.0/1.1 ports available through the internal USB headers

• Audio: Realtek 8-Channel High Definition Audio

• Display Outputs:

  • 1 x HDMI
  • 2 x DisplayPort

Key Features:

• Hybrid Digital VRM Design: 6+2+1 phase power delivery for stable and efficient performance.

• M.2 Thermal Guard: Ensures optimal performance and longevity of M.2 SSDs.

• PCIe EZ-Latch: Simplifies the installation and removal of graphics cards.

• Q-Flash Plus: Allows BIOS updates without installing a CPU, memory, or graphics card.
