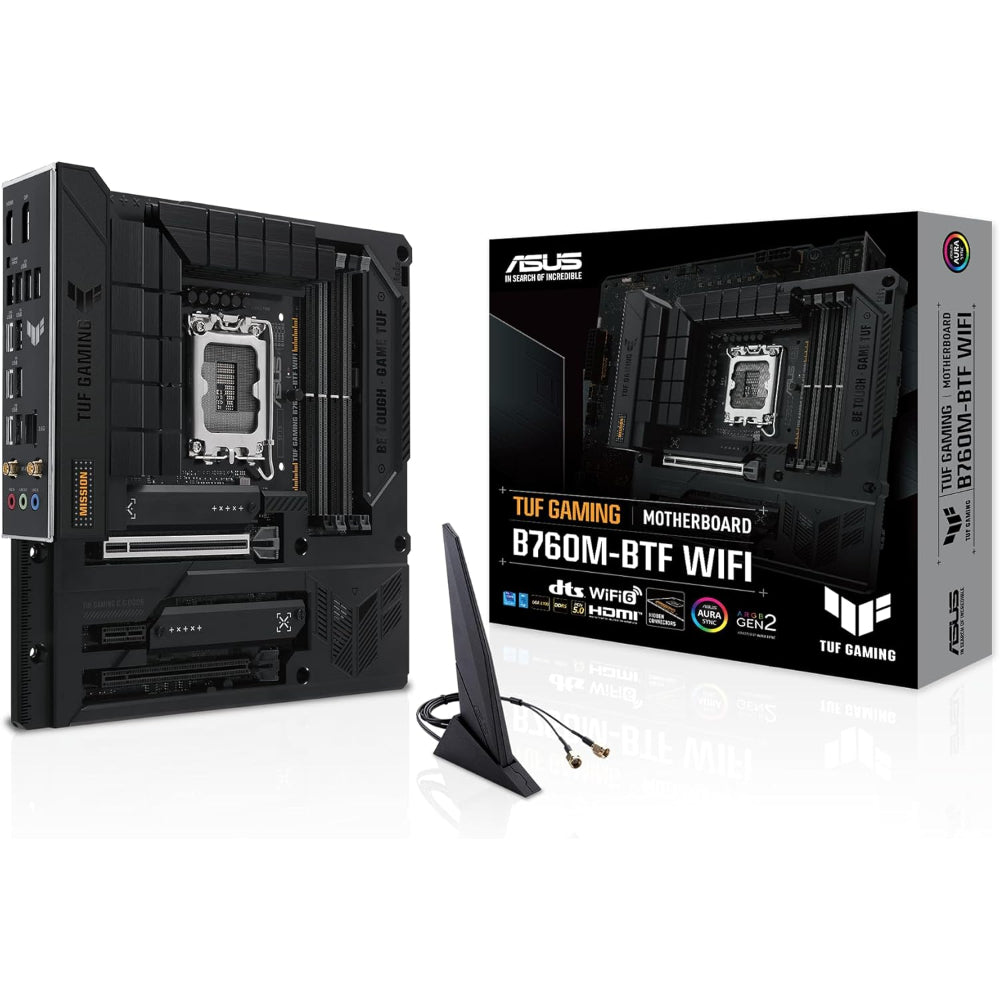

Asus TUF GAMING B760M-BTF Wi-Fi 6 Motherboard, LGA 1700 Socket, DDR5 Memory

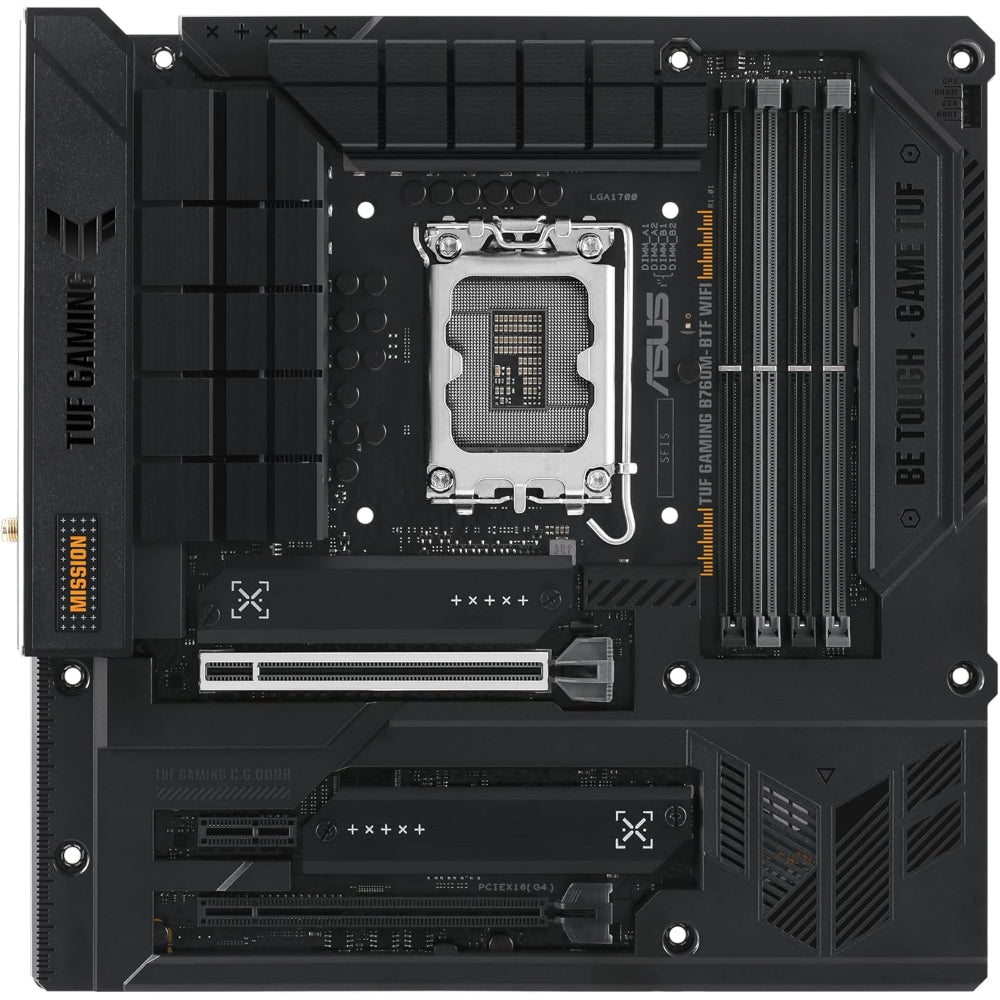

Asus TUF GAMING B760M-BTF Wi-Fi 6 is a micro-ATX motherboard designed for Intel's 12th, 13th, and 14th Generation Core processors, utilizing the LGA 1700 socket. It combines durability, performance, and advanced features, making it suitable for gaming enthusiasts and professionals seeking a reliable platform.

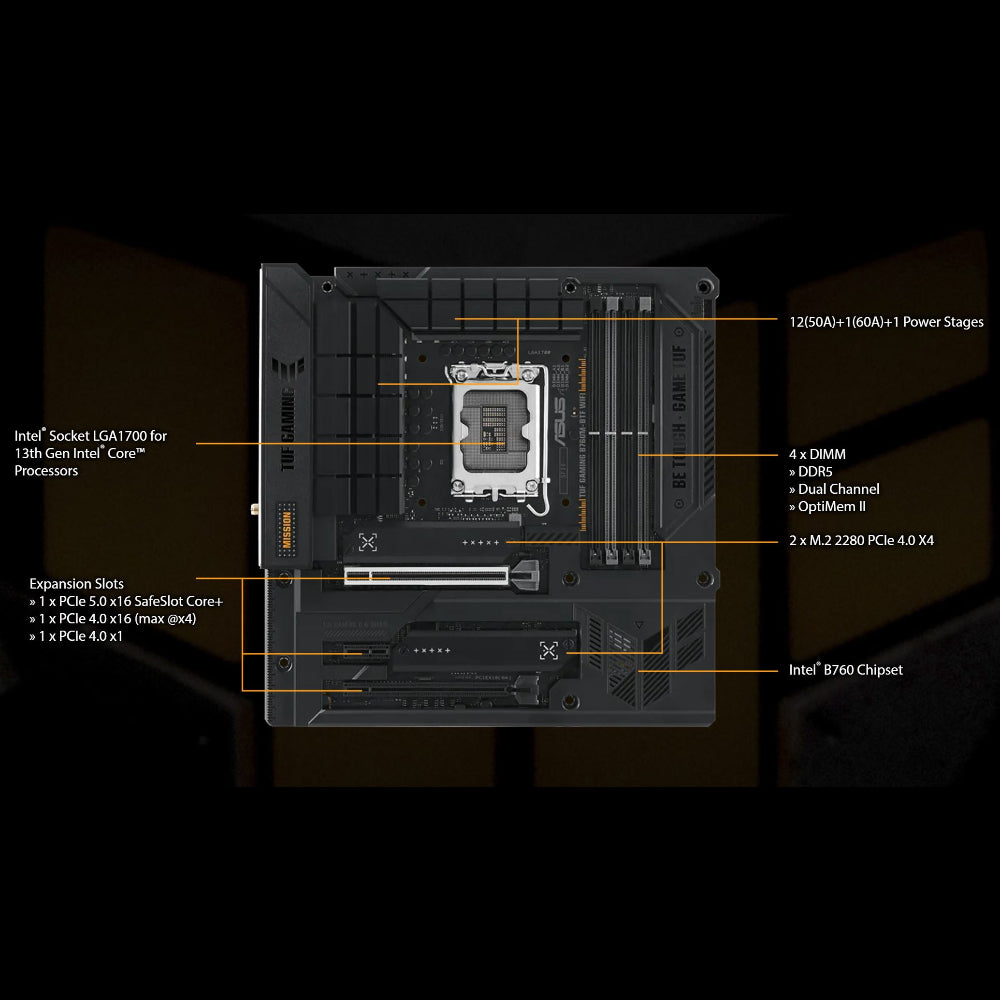

Key Specifications:

• CPU Support: Intel 12th, 13th, and 14th Generation Core processors with LGA 1700 socket.

• Chipset: Intel B760.

• Memory Support: 4 DDR5 DIMM slots supporting up to 192 GB of system memory.

• Expansion Slots:

  • 1 x PCIe 5.0

  • 2 x PCIe 4.0

• Storage Options:

  • 3 × M.2 slots (Key M) supporting PCIe 4.0.

  • 4 × SATA 6Gb/s ports.

• Networking:

  • Realtek 2.5Gb Ethernet.

  • Intel Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with Bluetooth v5.2.

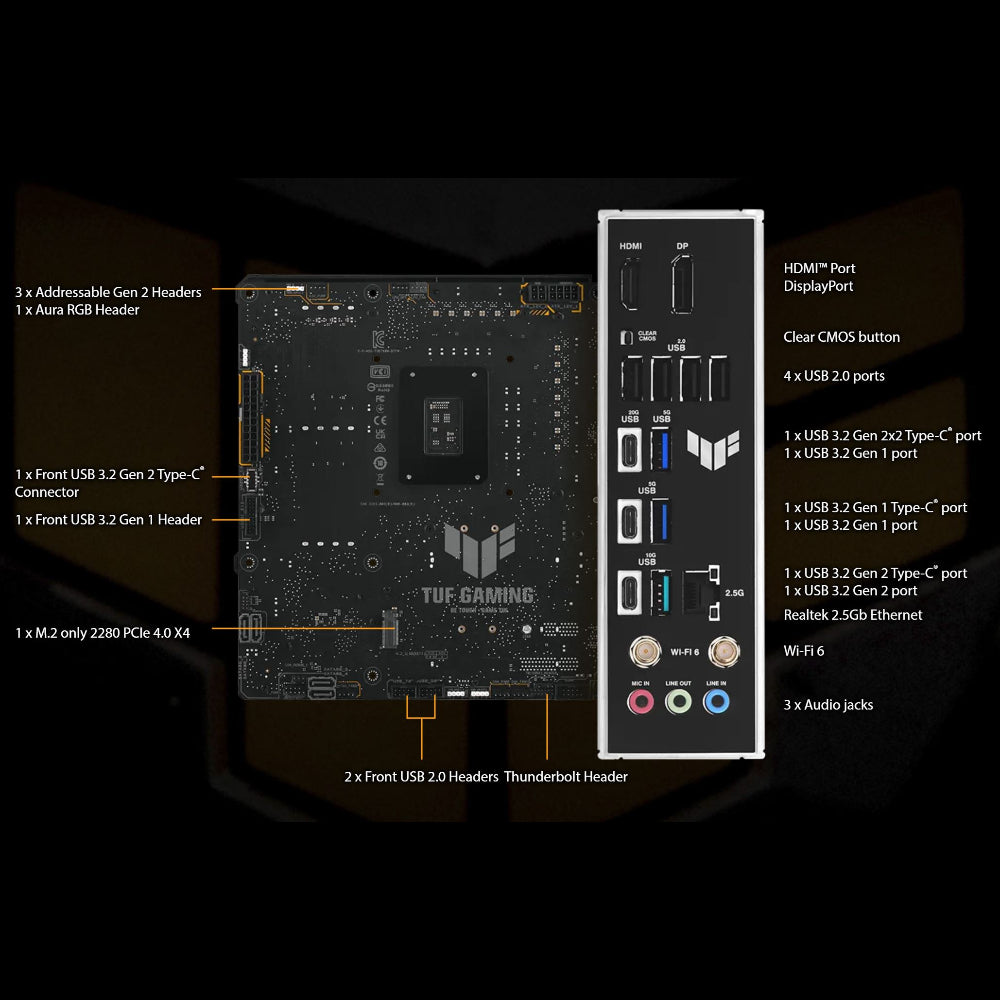

• USB Ports:

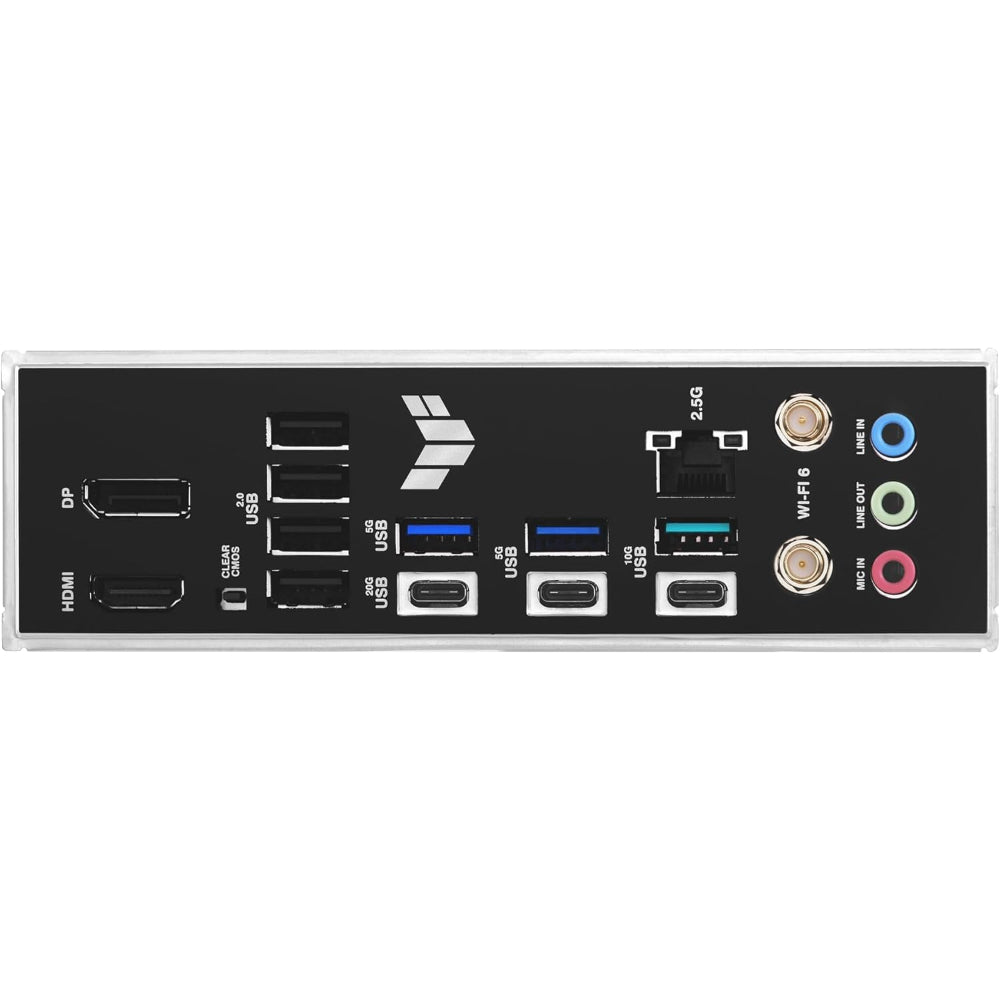

  • Rear USB:

    • 1 x USB 3.2 Gen 2x2 (20Gbps) Type-C.

    • 2 x USB 3.2 Gen 2 (10Gbps) ports (1 x Type-A, 1 x Type-C).

    • 3 x USB 3.2 Gen 1 (5Gbps) Type-A ports.

    • 4 x USB 2.0 Type-A ports.

  • Front USB:

    • 1 x USB 3.2 Gen 2 (10Gbps) connector (supports USB Type-C).

    • 1 x USB 3.2 Gen 1 (5Gbps) header supporting 2 additional USB 3.2 Gen 1 ports.

    • 2 x USB 2.0 headers supporting 4 additional USB 2.0 ports.

• Display Outputs:

  • 1 x DisplayPort.

  • 1 x HDMI

• Audio: High-definition audio with Realtek codec and premium audio capacitors.

Key Features:

• PCIe 5.0 Support: The primary PCIe 5.0 offers robust support for the latest graphics cards, providing high-speed data transfer and improved durability.

• Comprehensive Cooling: Features multiple fan headers, including CPU Fan, CPU OPT Fan, AIO Pump, and Chassis Fan headers, allowing for versatile cooling solutions to maintain optimal system temperatures.

• Advanced Connectivity: Equipped with Realtek 2.5Gb Ethernet and Intel Wi-Fi 6, the motherboard ensures fast and reliable network connectivity for online gaming and streaming.

• USB 3.2 Gen 2x2 Type-C: The rear USB Type-C port supports up to 20 Gbps data transfer speeds, facilitating rapid data movement and connectivity with modern devices.

• Aura Sync RGB Lighting: Offers customizable RGB lighting with Aura Sync, allowing synchronization with compatible devices for personalized aesthetics.

• DIY-Friendly Design: Incorporates features like SafeSlot, Q-LED indicators, and pre-mounted I/O shield, simplifying the building process and enhancing user experience.
