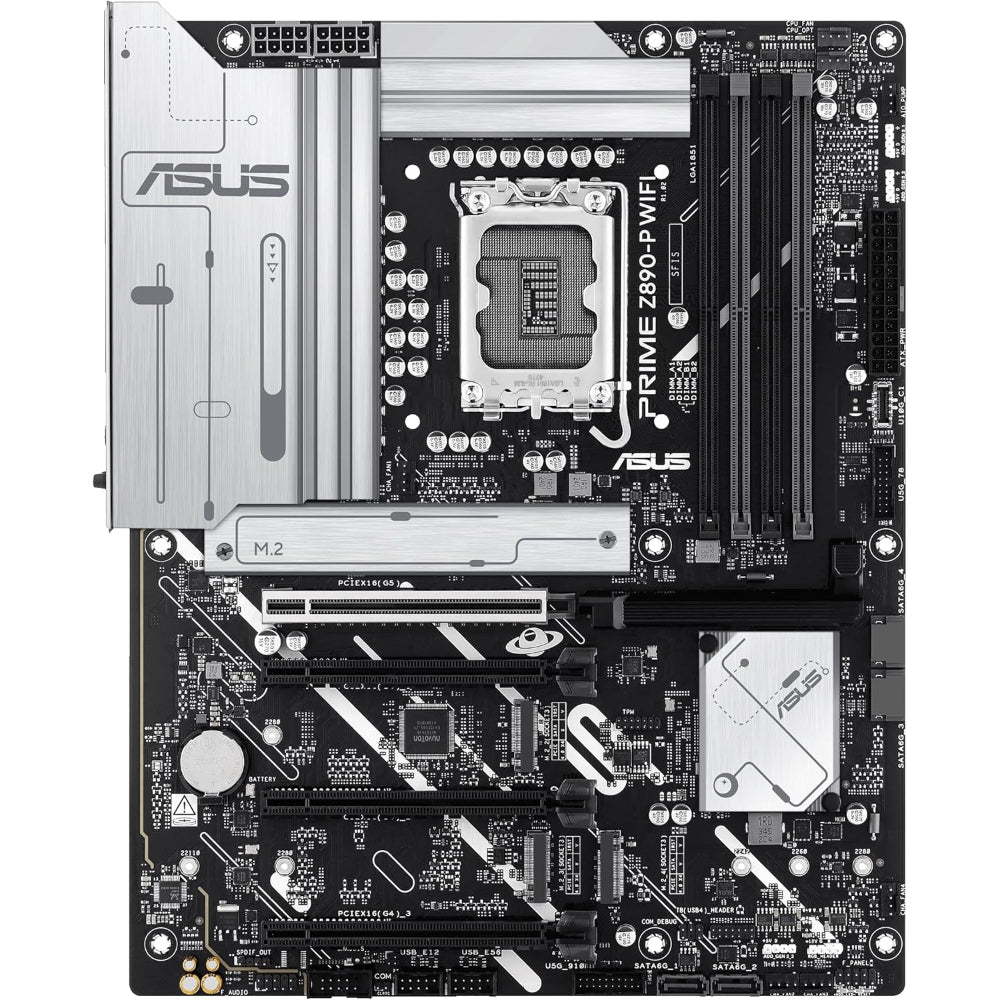

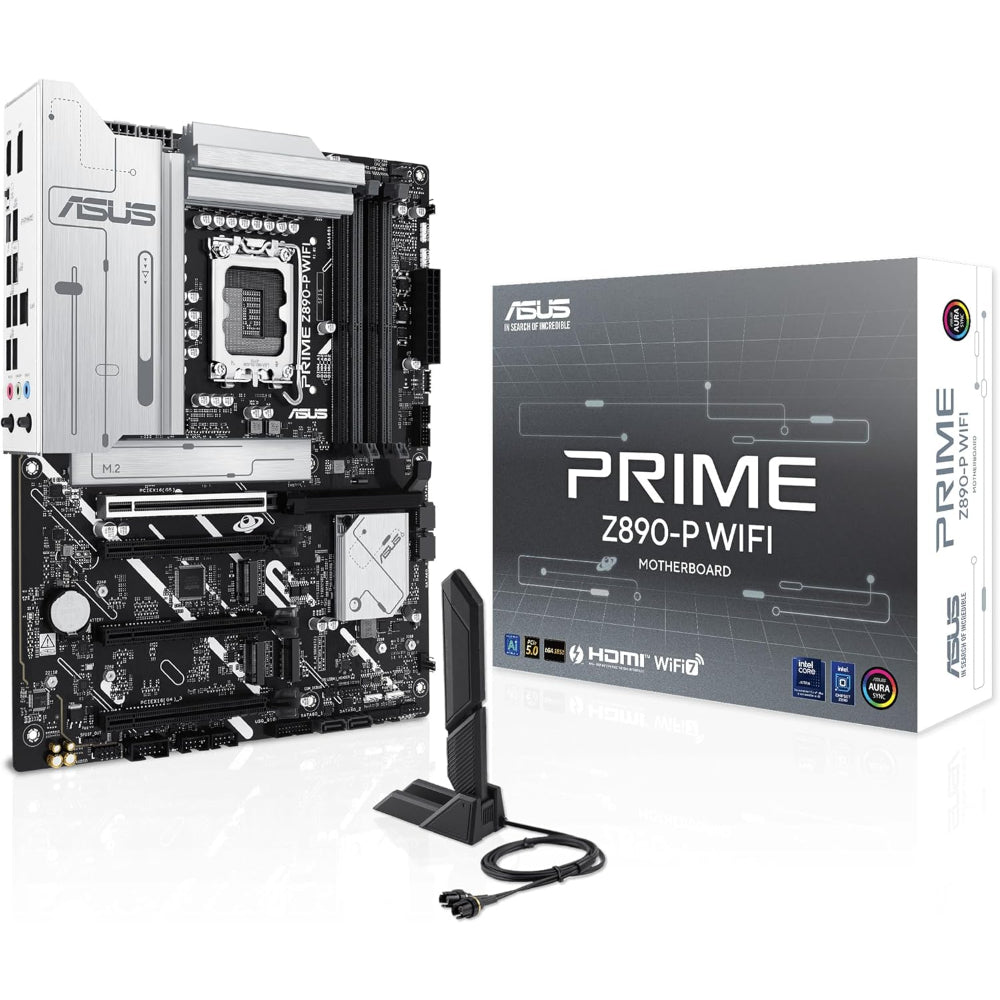

Asus PRIME Z890-P WIFI 7 Motherboard, LGA 1851 Socket, DDR5 Memory

ASUS PRIME Z890-P WIFI is a versatile ATX motherboard designed to harness the full potential of Intel Core Ultra Series 2 processors on the LGA 1851 socket. Combining robust power delivery, advanced AI features, and next-generation connectivity, it offers a solid foundation for both gaming and professional applications.

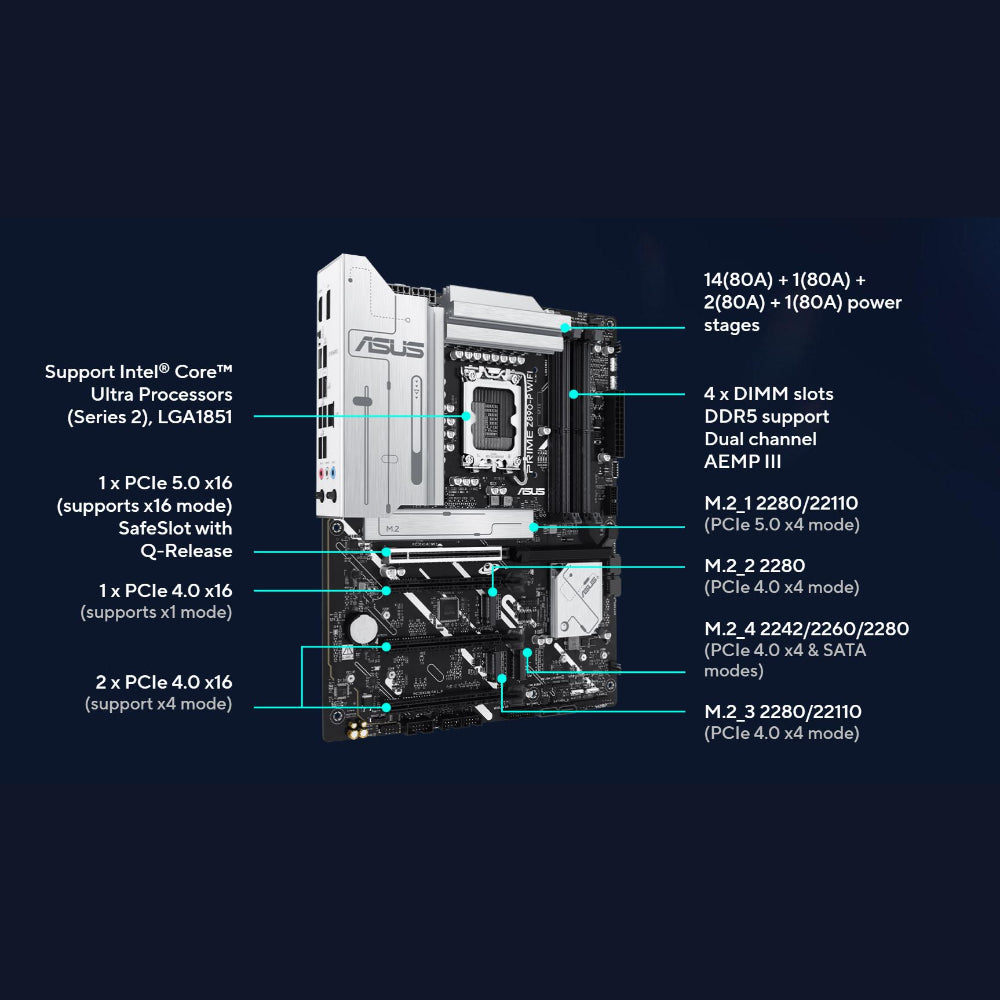

Key Specifications:

• Socket: LGA 1851

• Form Factor: ATX

• Chipset: Intel Z890

• Memory Support:

  • 4 x DDR5 DIMM slots

  • Up to 192GB RAM capacity

  • Supports DDR5 speeds up to 8666+ MT/s (OC)

• Storage Support:

  • 4 x M.2 slots:

    • 1 x PCIe 5.0

    • 3 x PCIe 4.0

  • 4 x SATA 6Gb/s ports

• Expansion Slots:

  • 1 x PCIe 5.0

  • 3 x PCIe 4.0

• Networking:

  • Wi-Fi 7 (802.11be)

  • 2.5Gb Ethernet

  • Bluetooth 5.4

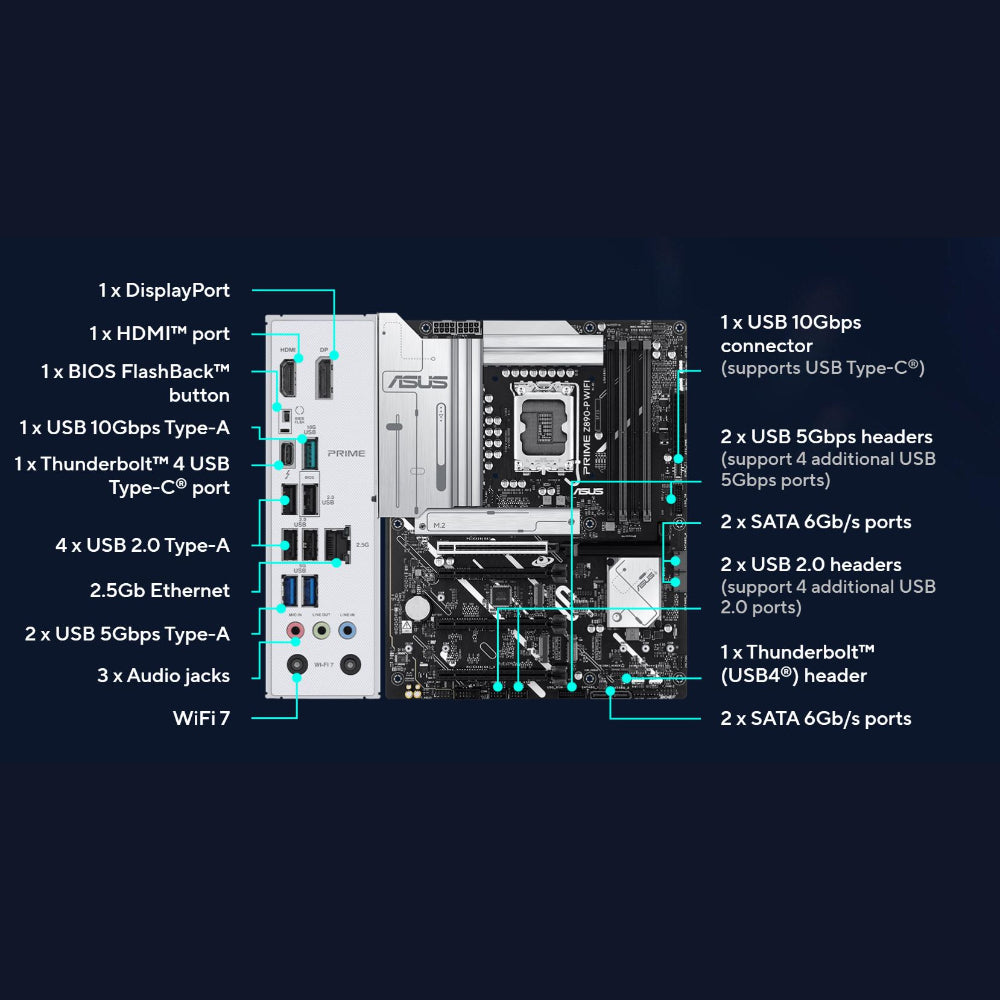

• USB Ports:

  • Rear USB Ports:

    • 1 x Thunderbolt 4 port (1 x USB Type-C)
    • 1 x USB 10Gbps port (1 x Type-A)
    • 2 x USB 5Gbps ports (2 x Type-A)
    • 4 x USB 2.0 ports (4 x Type-A)



  • Front USB Ports:

    • 1 x USB 10Gbps (supports USB Type-C)
    • 2 x USB 5Gbps support 4 additional USB 5Gbps ports
    • 2 x USB 2.0 support 4 additional USB 2.0 ports



• Audio: Realtek 7.1-Channel High Definition Audio

• Display Outputs:

  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x Intel Thunderbolt 4 port

Key Features:

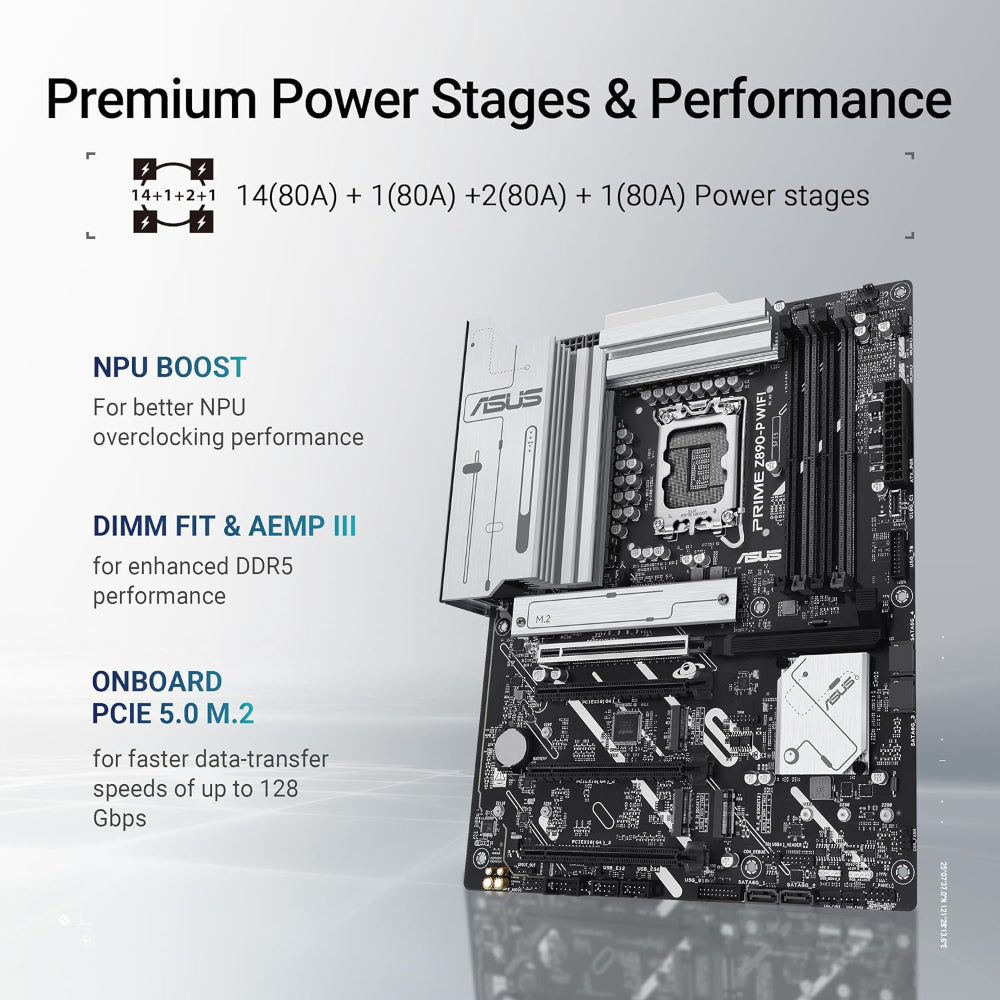

• Robust Power Delivery: 14+1+2+1 power stages with 80A-rated MOSFETs ensure stable and efficient power for high-performance CPUs.

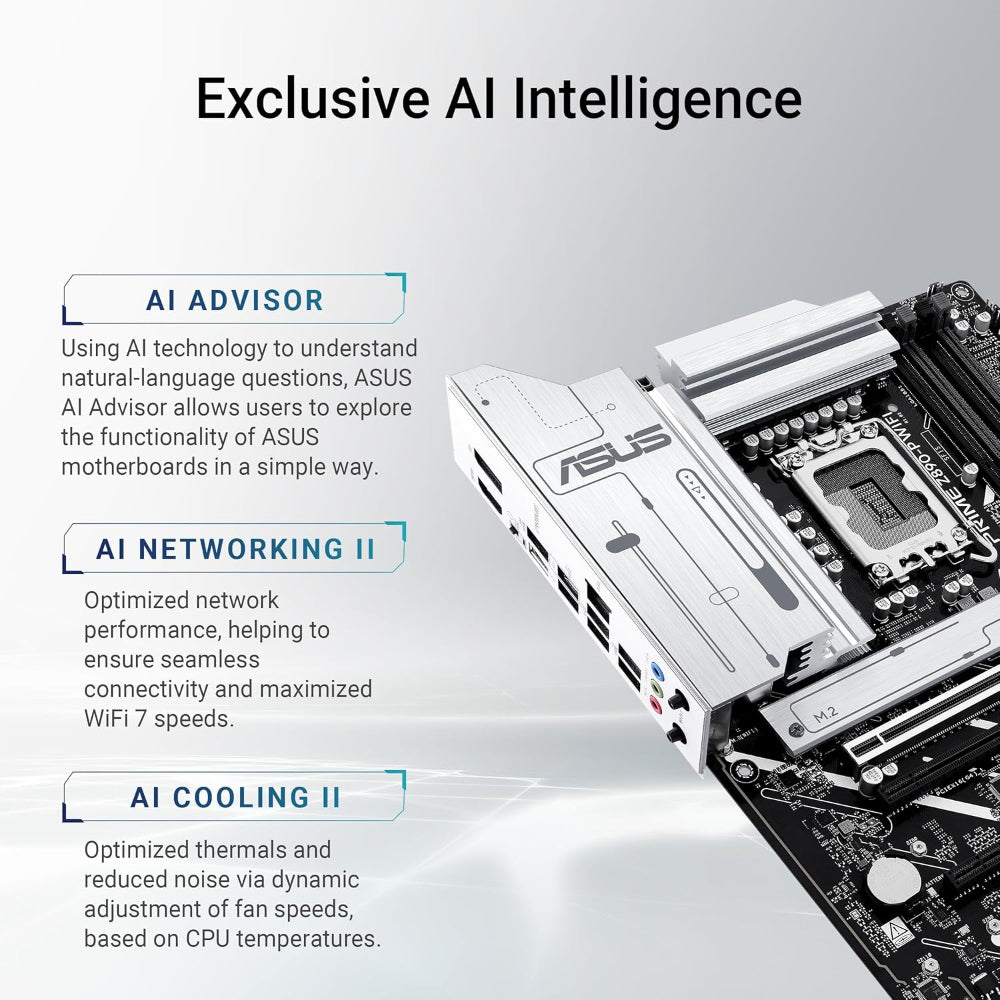

• Advanced AI Features: Includes AI Overclocking, AI Cooling II, AI Networking II, and AI Advisor for optimized system performance.

• NPU Boost: Overclock the Neural Processing Unit (NPU) with a single BIOS setting for enhanced AI workloads.

• Comprehensive Cooling: Features multiple fan headers, AI-controlled cooling profiles, and thermal pads for optimal thermal performance.

• Next-Gen Connectivity: Equipped with Wi-Fi 7, 2.5Gb Ethernet, Thunderbolt 4, and USB 10Gbps for ultra-fast networking and data transfer.

• DIY-Friendly Design: Includes PCIe Slot Q-Release, M.2 Q-Latch, Q-LED Core, and pre-mounted I/O shield for simplified installation and upgrades.

• Aura Sync RGB: Customizable RGB lighting adds a unique aesthetic to your build.
