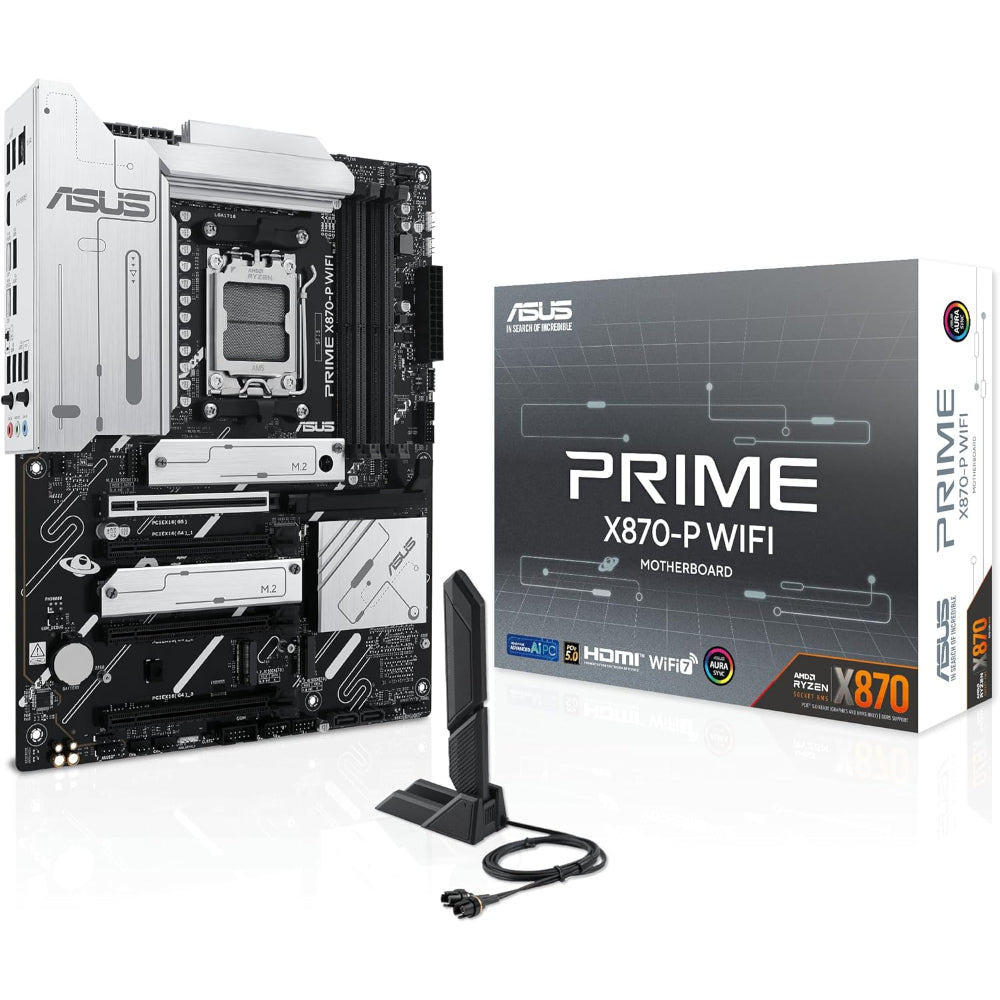

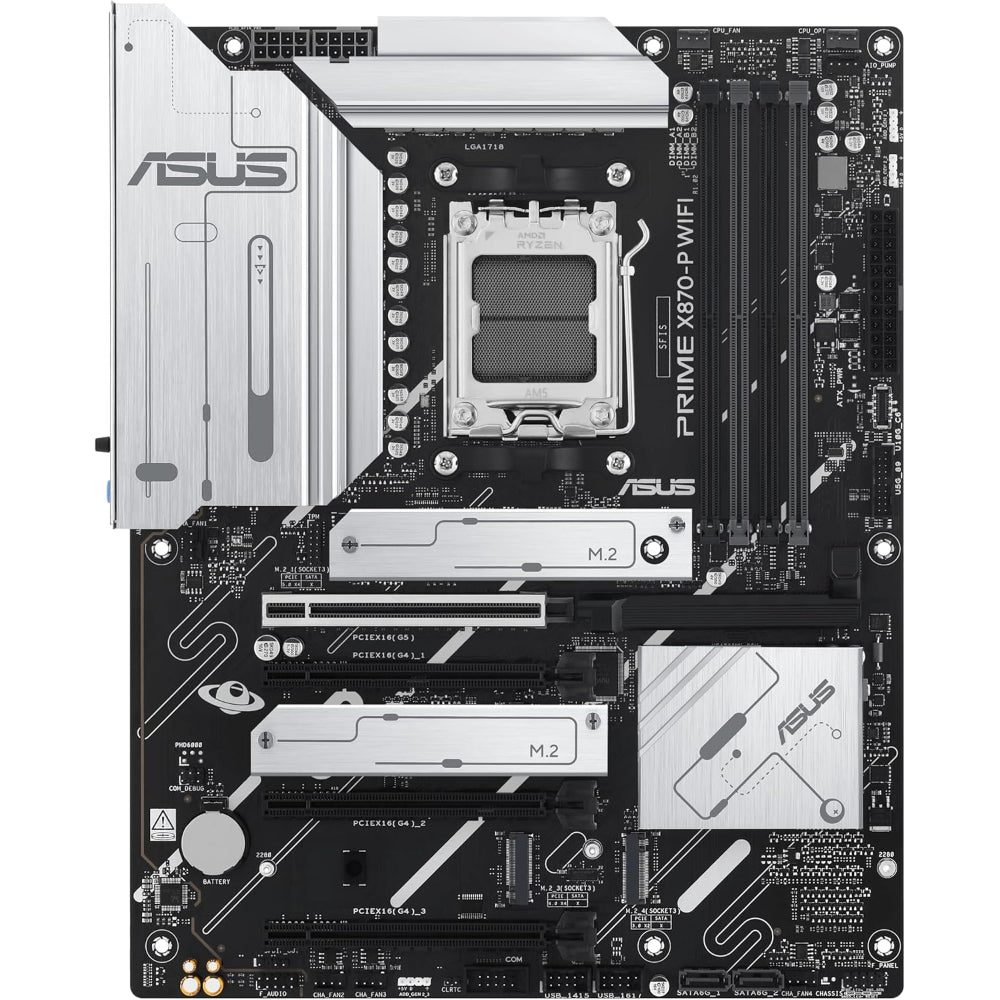

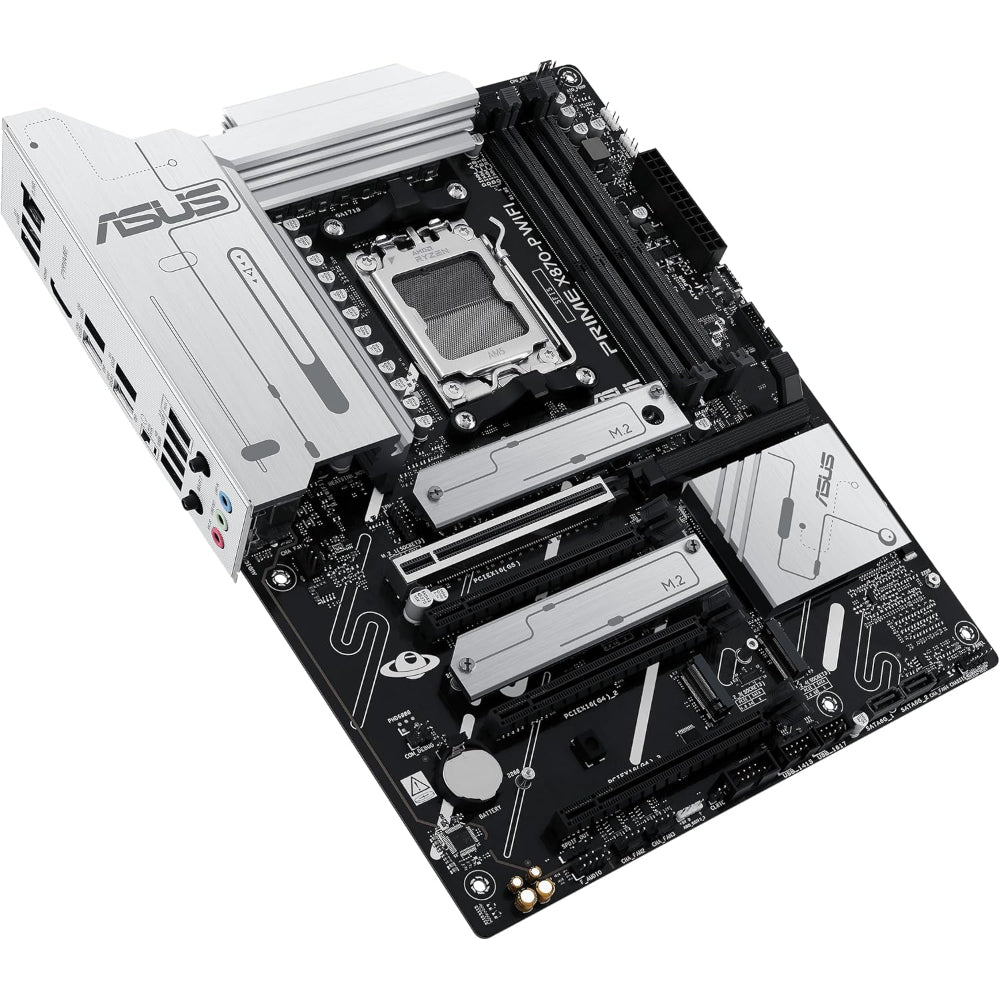

Asus PRIME X870-P Wi-Fi 7 Motherboard, AM5 Socket, DDR5 Memory

Asus PRIME X870-P Wi-Fi 7 is an ATX motherboard designed for AMD AM5 socket, supporting Ryzen Series 9000, 8000, and 7000 Desktop Processors. It offers a robust feature set tailored for both enthusiasts and professionals seeking high performance and advanced connectivity.

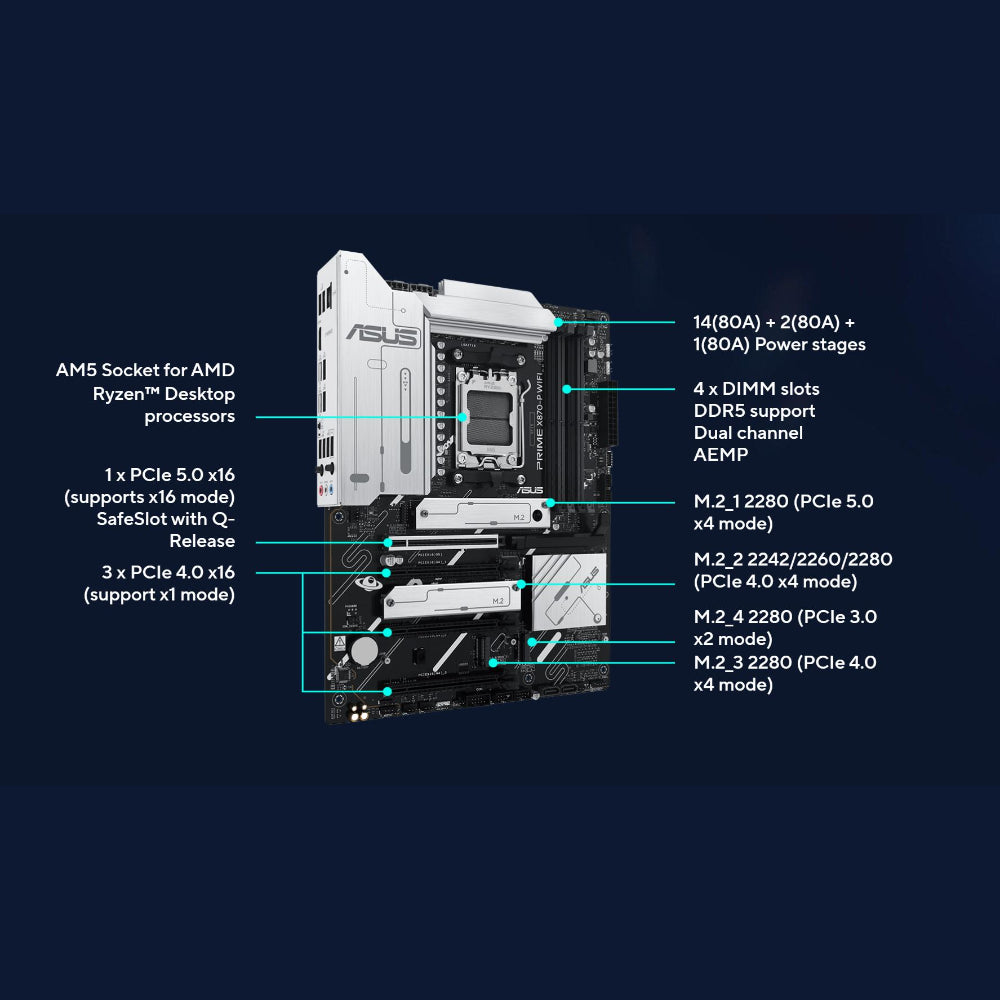

Key Specifications:

• CPU Support: AMD Ryzen Series 9000, 8000, and 7000 Desktop Processors.

• Chipset: AMD X870.

• Memory Support: Four DDR5 DIMM slots, supporting up to 192 GB of system memory with speeds up to 8000+ MT/s (OC).

• Storage Options:

  • Four M.2 slots:

    • 1 x PCIe 5.0

    • 2 x PCIe 4.0

    • 1 x PCIe 3.0

  • 2 x SATA 6Gb/s ports.

• Networking:

  • Realtek 2.5Gb Ethernet.

  • Wi-Fi 7 (802.11be) with ASUS Wi-Fi Q-Antenna.

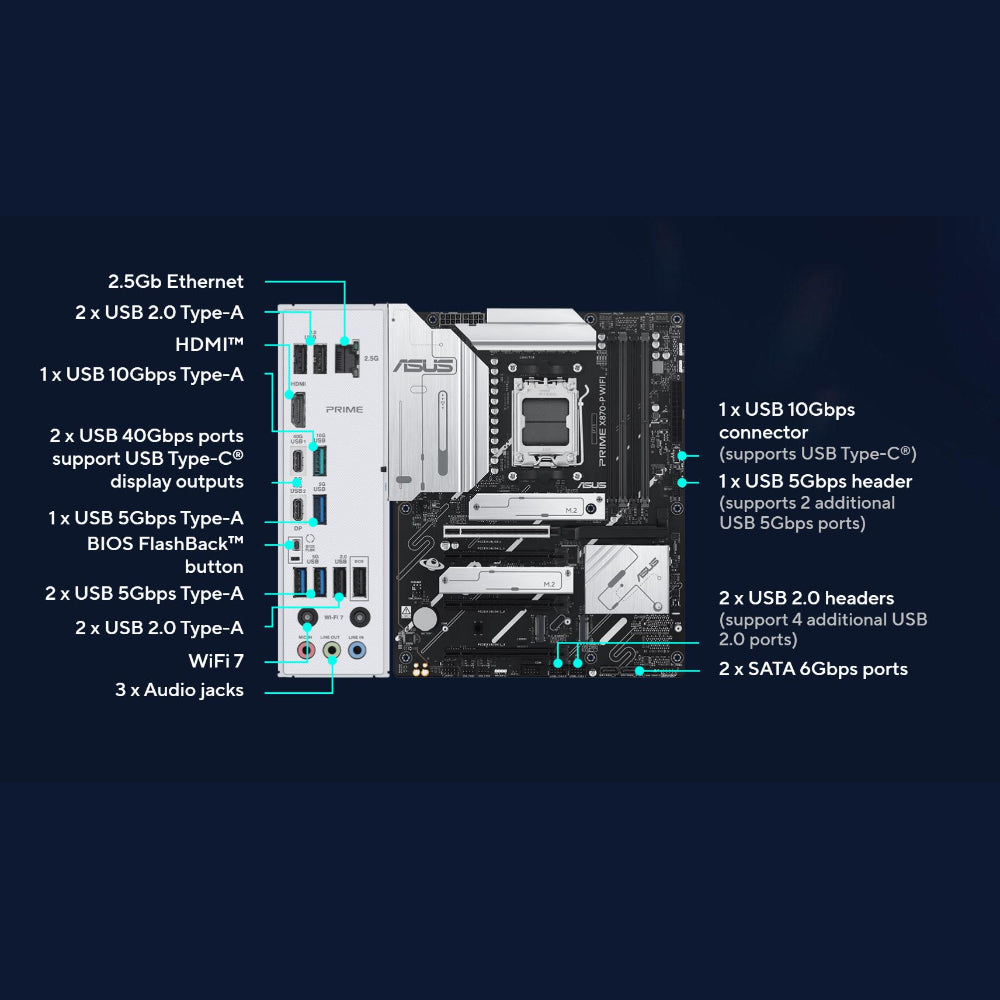

• USB Ports:

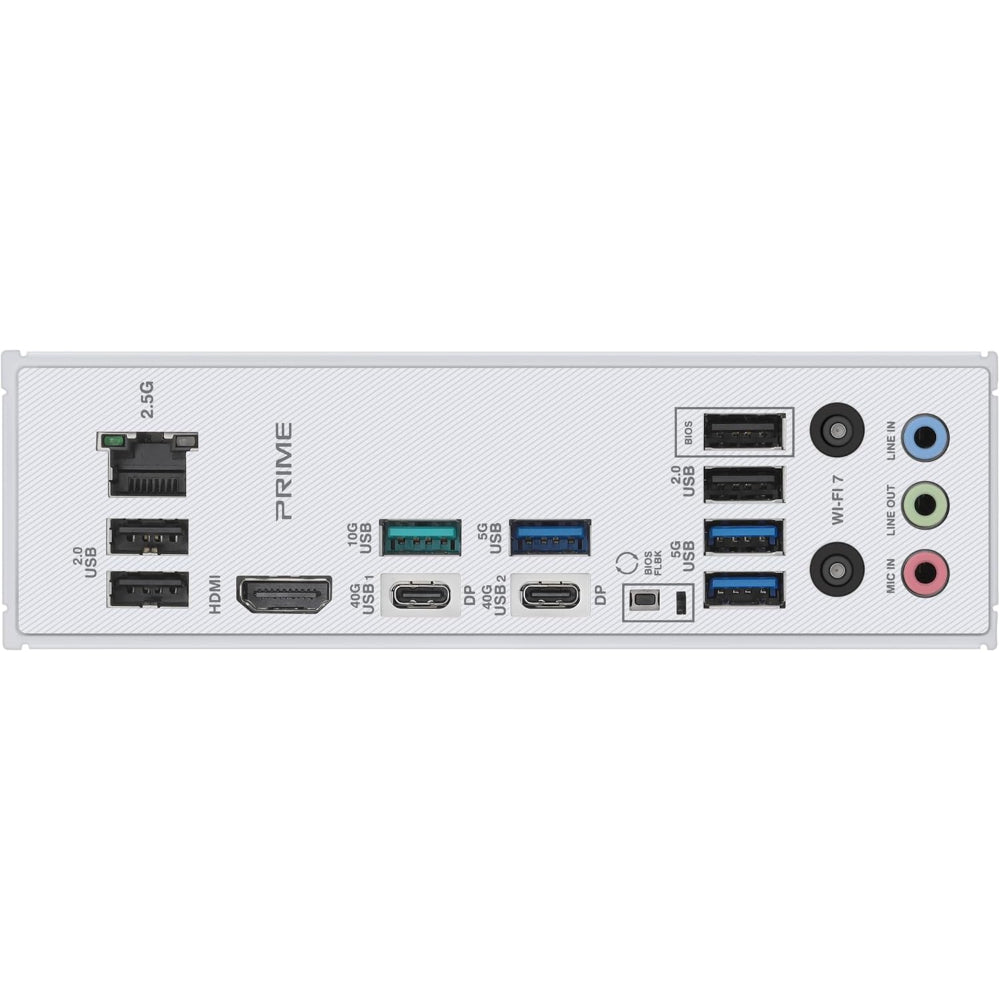

  • Rear USB:

    • 2 x USB4 (40Gbps) ports (2 × USB Type-C).

    • 1 x USB (10Gbps) port (1 × Type-A).

    • 3 x USB (5Gbps) ports (3 × Type-A).

    • 4 x USB 2.0 ports (4 × Type-A).

  • Front USB:

    • 1 x USB 10Gbps connector (supports USB Type-C).

    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports.

    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports.

• Audio: High-definition audio with Realtek codec and premium audio capacitors.

Key Features:

• PCIe 5.0 Support: The primary PCIe 5.0 x16 SafeSlot offers robust support for the latest graphics cards, providing high-speed data transfer and improved durability.

• Comprehensive Cooling: Features multiple onboard heatsinks and hybrid fan headers to maintain optimal system temperatures during intense workloads.

• Advanced Connectivity: Equipped with Realtek 2.5Gb Ethernet and Wi-Fi 7, the motherboard ensures fast and reliable network connectivity for online gaming and streaming.

• Aura Sync RGB Lighting: Offers customizable RGB lighting with Aura Sync, allowing synchronization with compatible devices for personalized aesthetics.

• DIY-Friendly Design: Incorporates features like Q-Antenna, PCIe Slot Q-Release, M.2 Q-Latch, Q-LED Core, and pre-mounted I/O shield, simplifying the building process and enhancing user experience.
