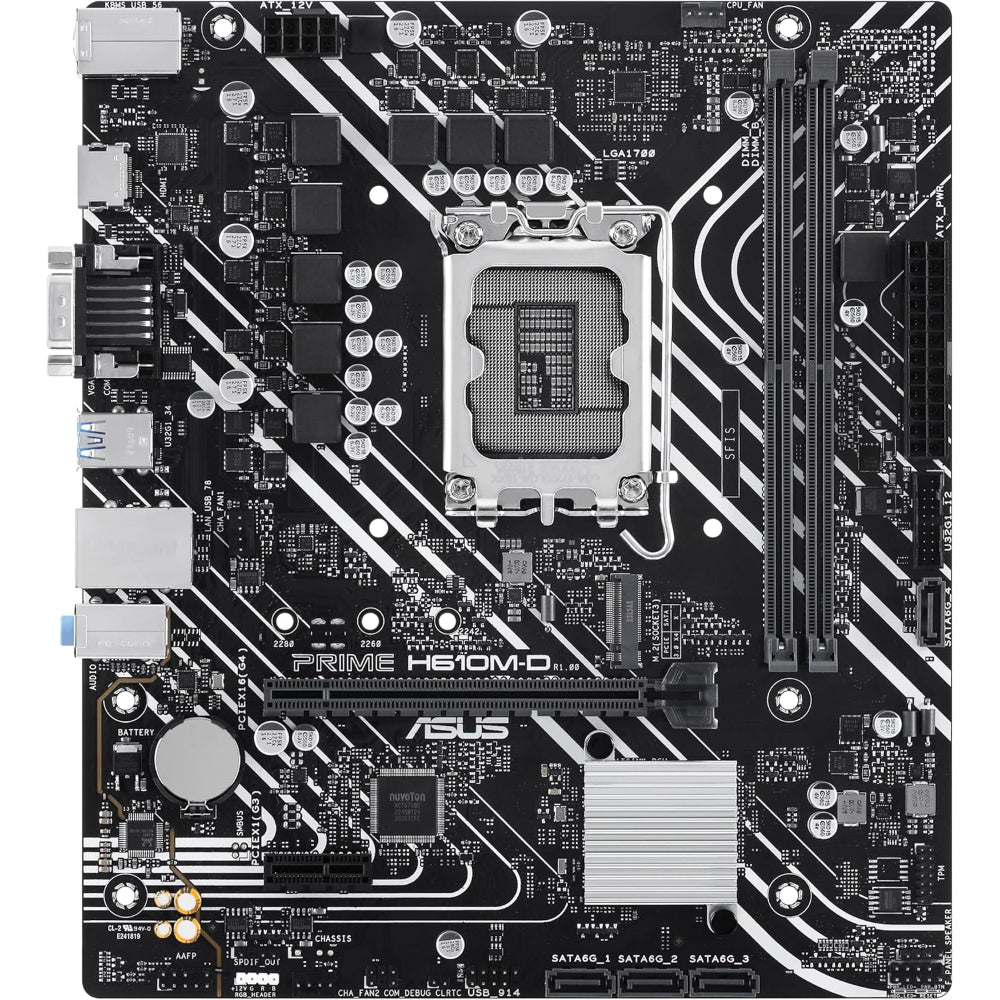

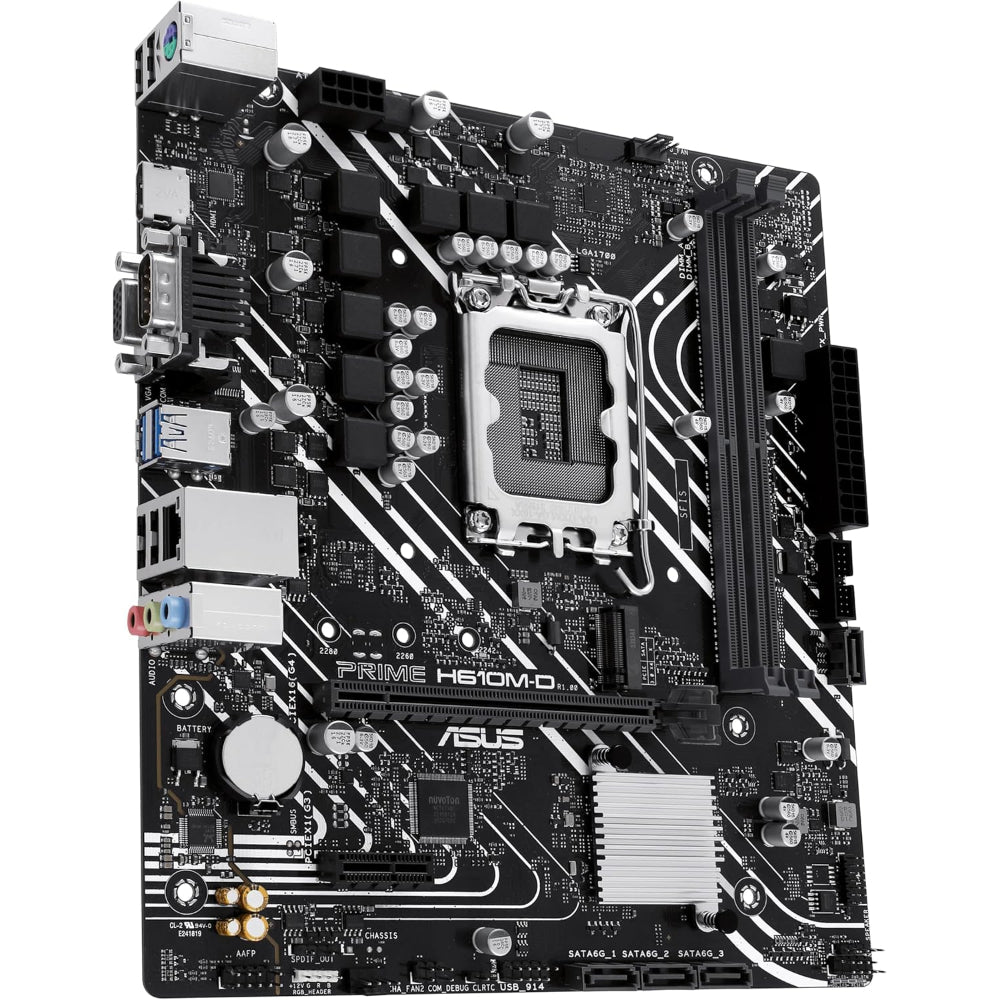

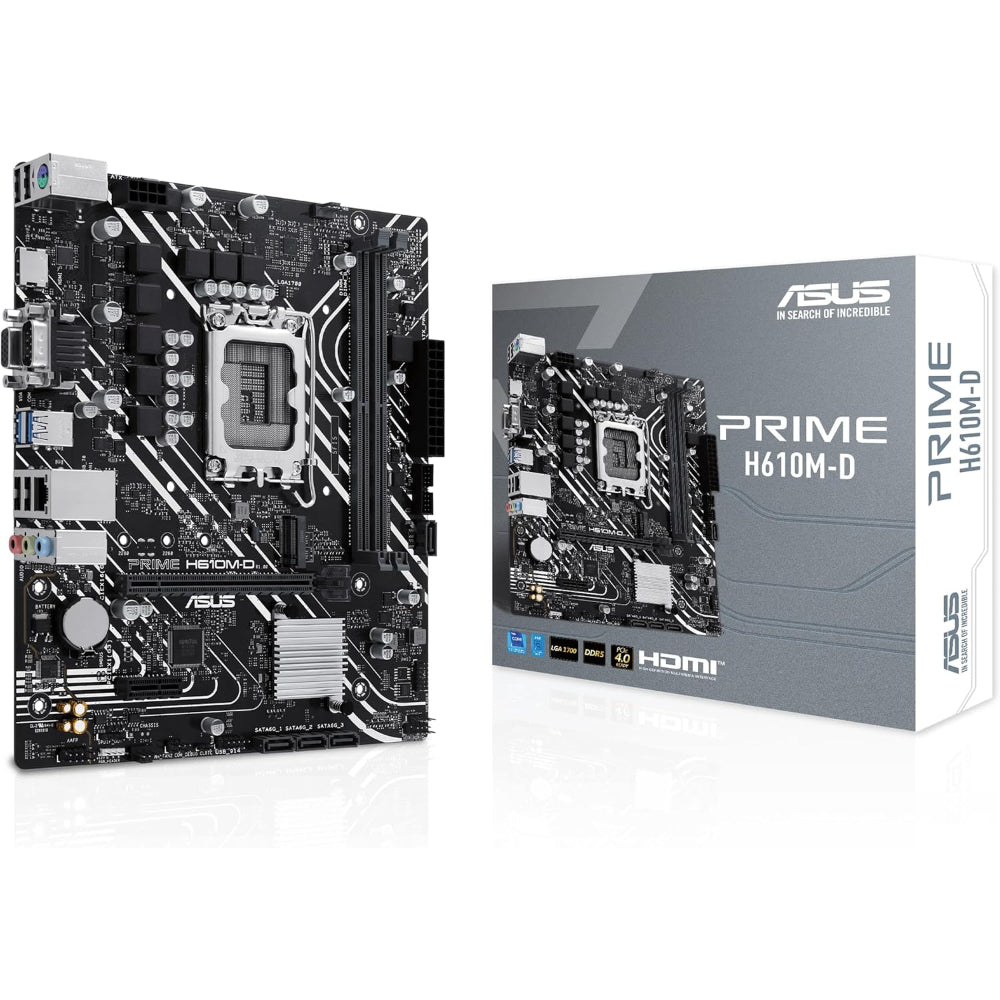

Asus PRIME H610M-D Motherboard, LGA 1700 Socket, DDR5 Memory

ASUS PRIME H610M-D is a micro-ATX motherboard engineered for 12th, 13th, and 14th Gen Intel Core processors on the LGA 1700 socket. Combining DDR5 memory support, PCIe 4.0, and robust connectivity options, it offers a reliable foundation for home, office, and entry-level gaming builds.

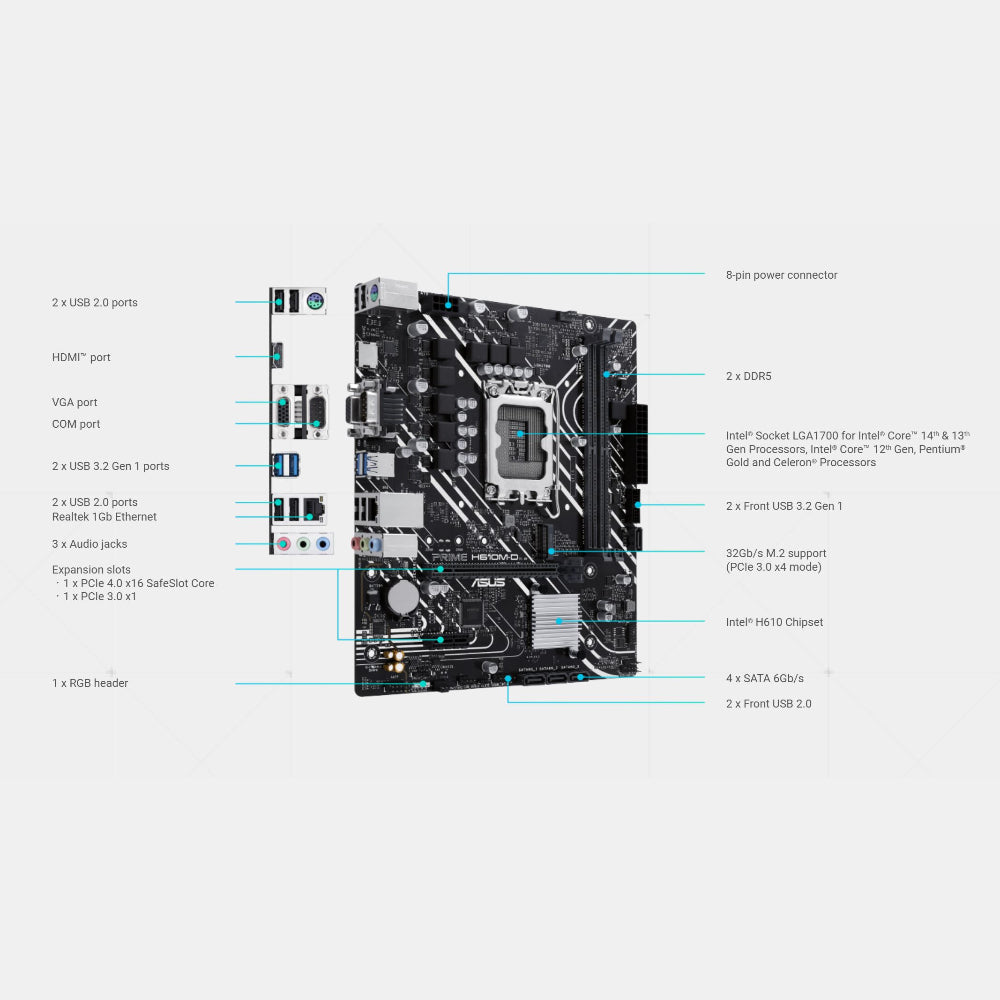

Key Specifications:

• Socket: LGA 1700

• Form Factor: Micro-ATX

• Chipset: Intel H610

• Memory Support:

  • 2 x DDR5 DIMM slots

  • Up to 96GB RAM capacity

  • Supports DDR5 up to 5600MHz (OC)

• Storage Support:

  • 1 x M.2 slot (PCIe 4.0)

  • 4 x SATA 6Gb/s ports

• Expansion Slots:

  • 1 x PCIe 4.0

  • 1 x PCIe 3.0

• Networking:

  • Realtek 1Gb Ethernet

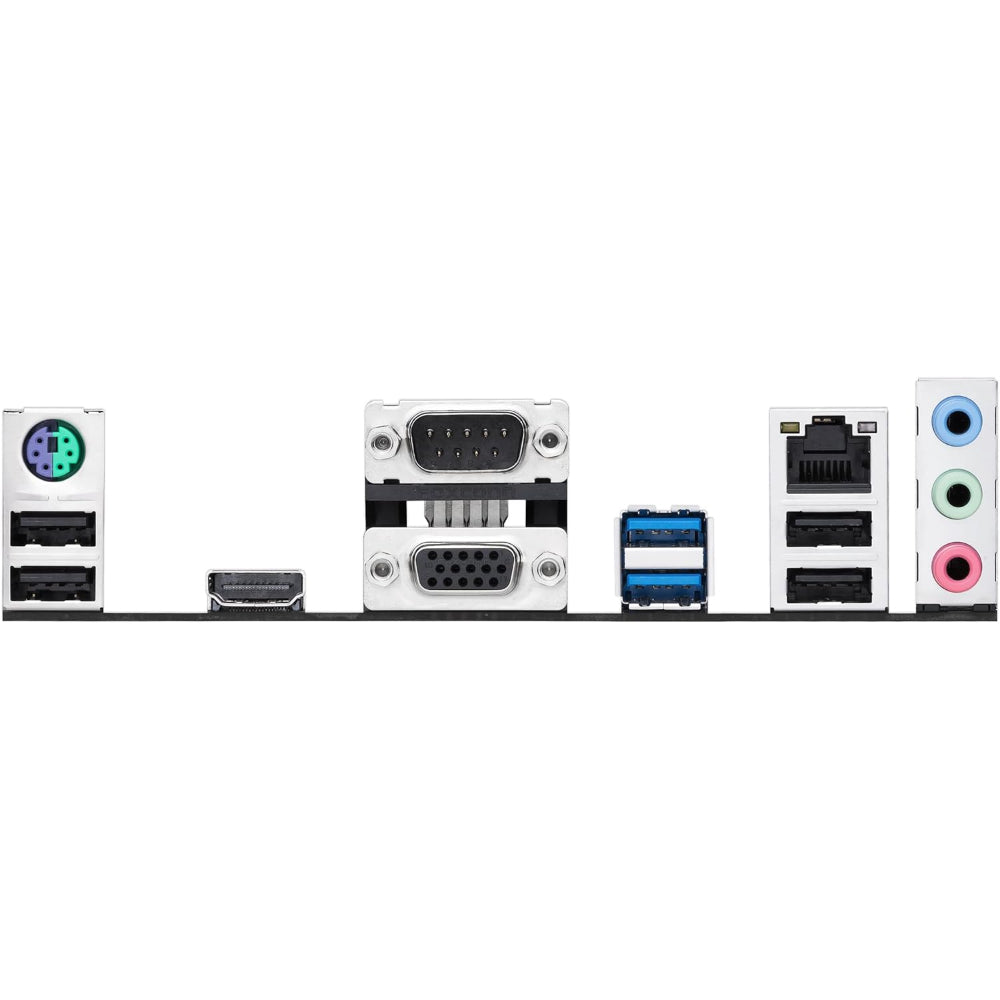

• USB Ports:

  • Rear USB Ports:

    • 2 x USB 3.2 Gen 1 (5Gbps) ports (2 x Type-A)
    • 4 x USB 2.0 ports (4 x Type-A)



  • Front USB Ports:

    • 1 x USB 3.2 Gen 1 (5Gbps) supports 2 additional USB 3.2 Gen 1 ports
    • 1 x USB 2.0 supports 2 additional USB 2.0 ports



• Audio: Realtek 7.1-Channel High Definition Audio

• Display Outputs:

  • 1 x VGA port
  • 1 x HDMI port

Key Features:

• DDR5 Memory Support: Compatible with the latest DDR5 modules for enhanced performance and efficiency.

• PCIe 4.0 Expansion: Supports next-generation graphics cards and storage devices.

• Comprehensive Cooling: PCH heatsink and Fan Xpert 2+ for optimized thermal performance.

• 5X Protection III: Includes DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, and stainless-steel back I/O for enhanced durability.

• Customizable RGB Support: Aura Sync with addressable Gen 2 headers for personalized lighting effects.

• User-Friendly Design: Features Q-DIMM, Q-LED Core, and Q-Slot for simplified installation and troubleshooting.
