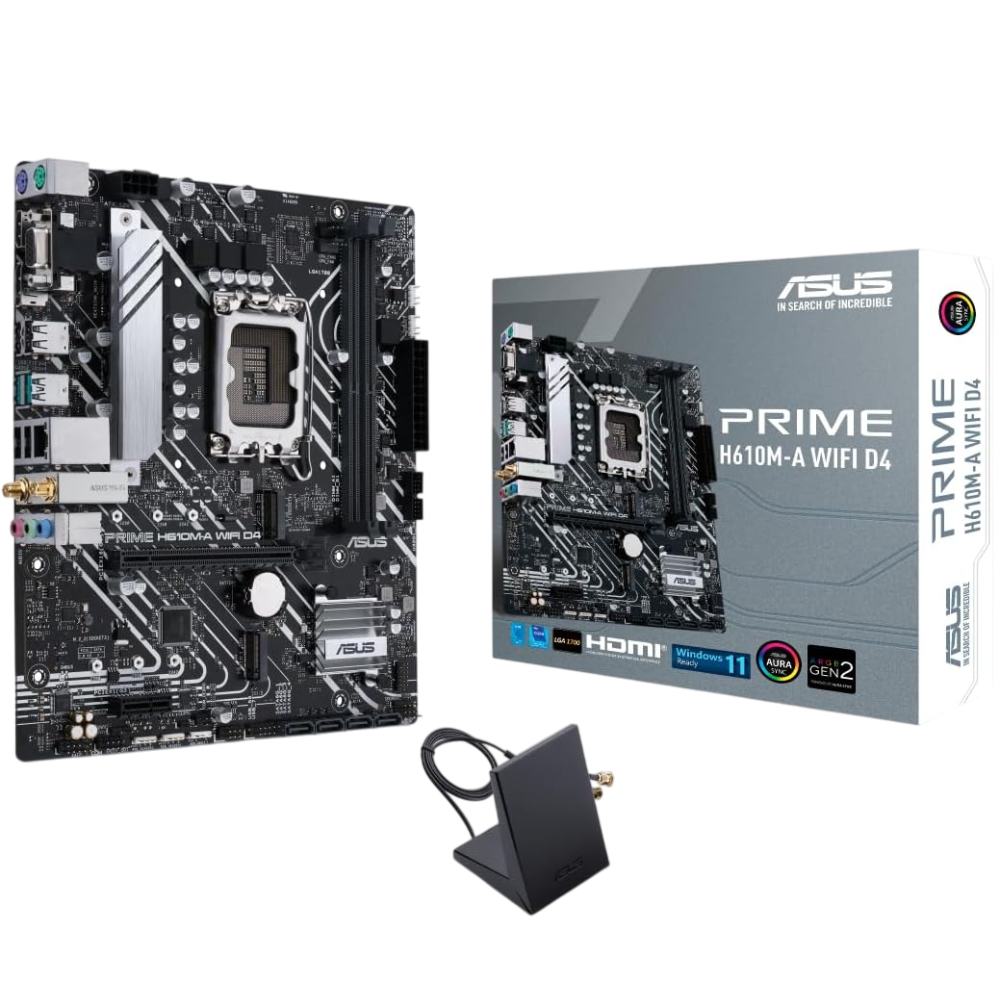

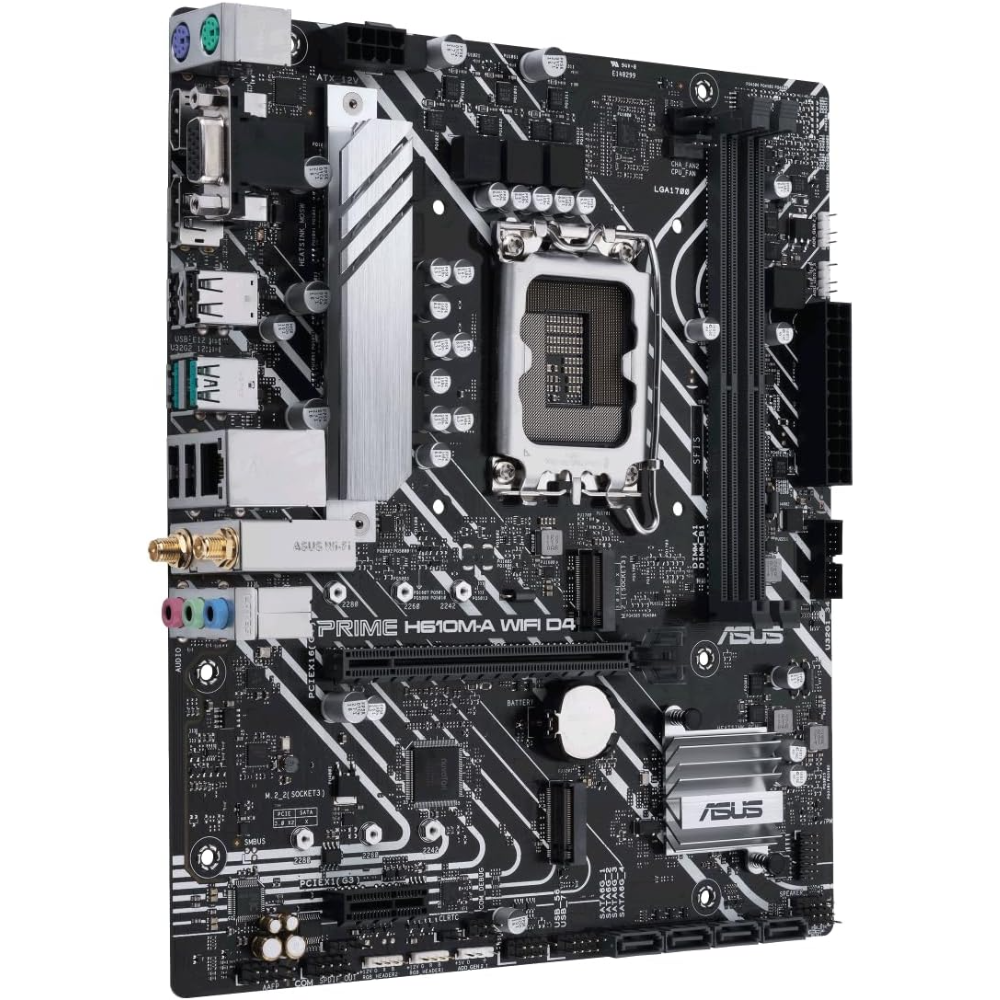

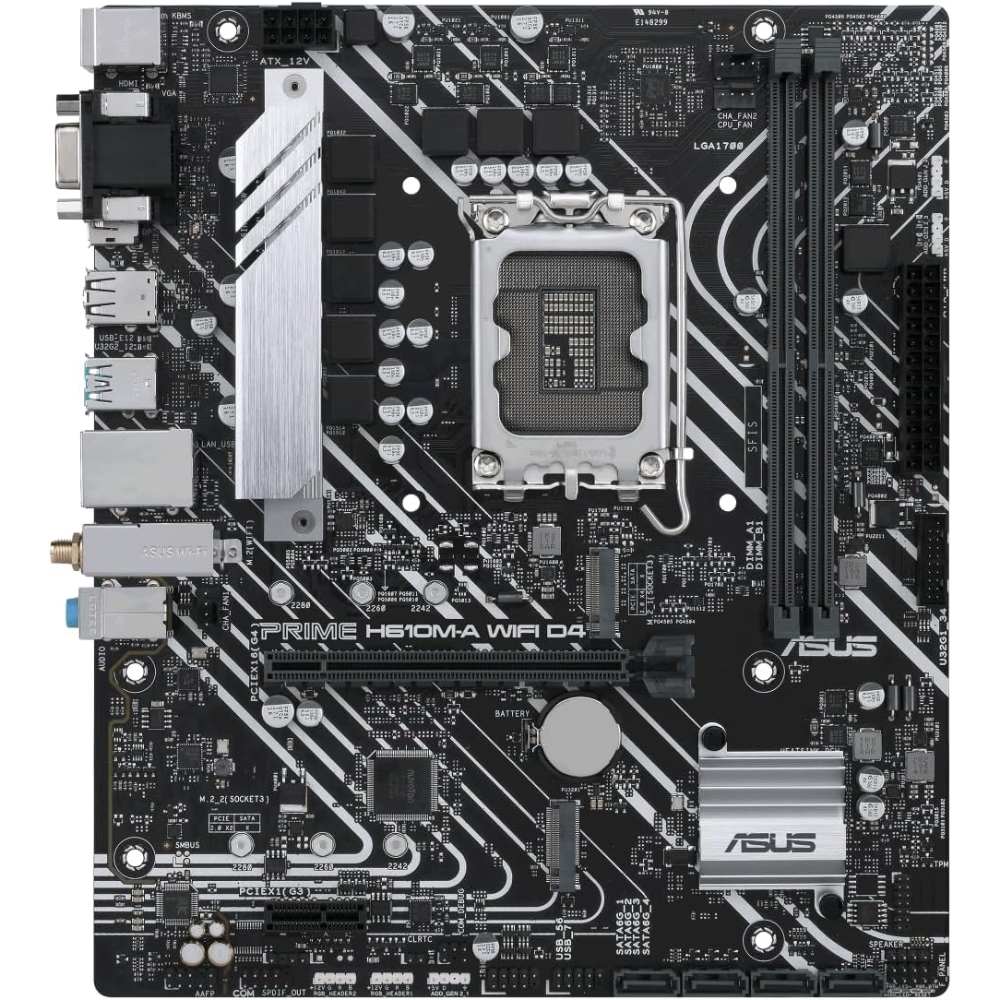

Asus PRIME H610M-A WiFi D4 Motherboard, LGA 1700 Socket, DDR4 Memory

Asus PRIME H610M-A WiFi D4 is a micro-ATX motherboard tailored for 12th, 13th, and 14th Gen Intel Core processors on the LGA 1700 socket. Combining DDR4 memory support, integrated Wi-Fi 5, and robust connectivity options, it offers a reliable foundation for home, office, and entry-level gaming builds.

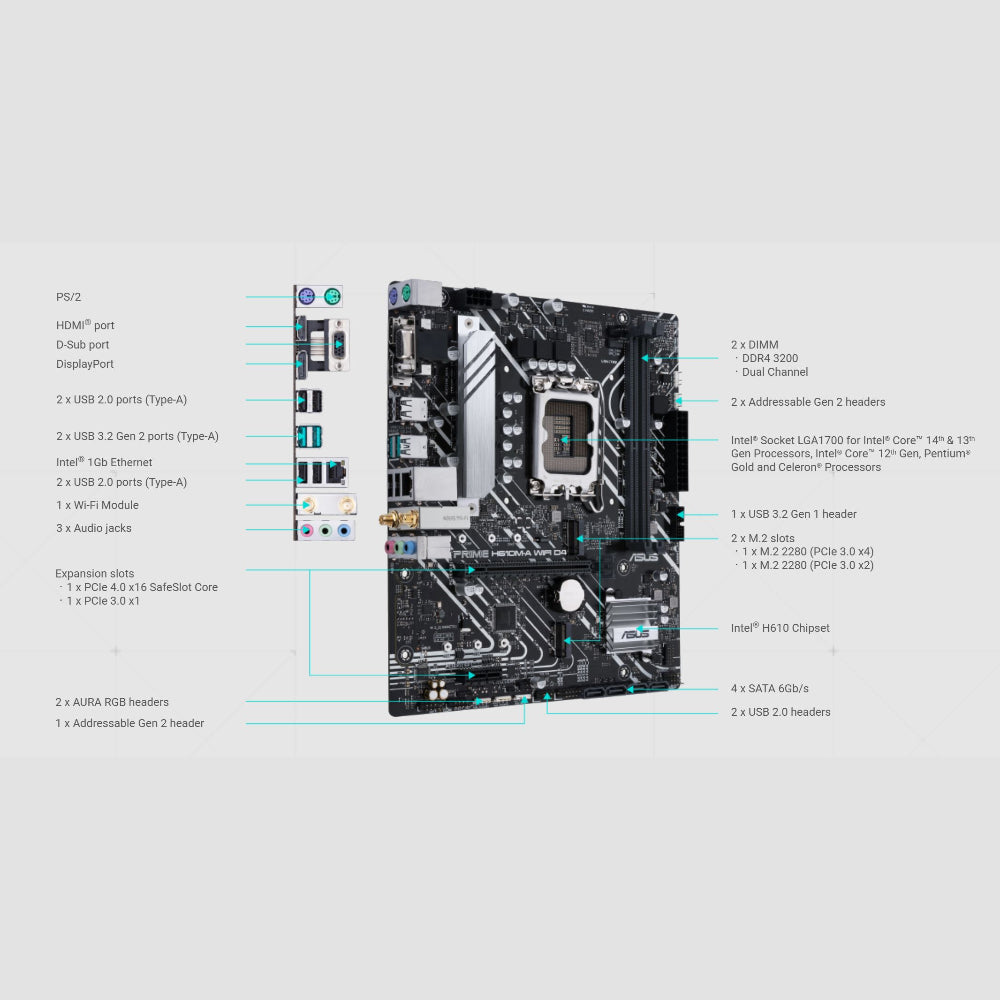

Key Specifications:

• Socket: LGA 1700

• Form Factor: Micro-ATX

• Chipset: Intel H610

• Memory Support:

  • 2 x DDR4 DIMM slots

  • Up to 64GB RAM capacity

  • Supports DDR4 up to 3200MHz

• Storage Support:

  • 2 x M.2 slots (PCIe 3.0)

  • 4 x SATA 6Gb/s ports

• Expansion Slots:

  • 1 x PCIe 4.0

  • 1 x PCIe 3.0

• Networking:

  • Intel 1Gb Ethernet

  • Built-in Wi-Fi 5 (802.11ac)

  • Bluetooth 5.0

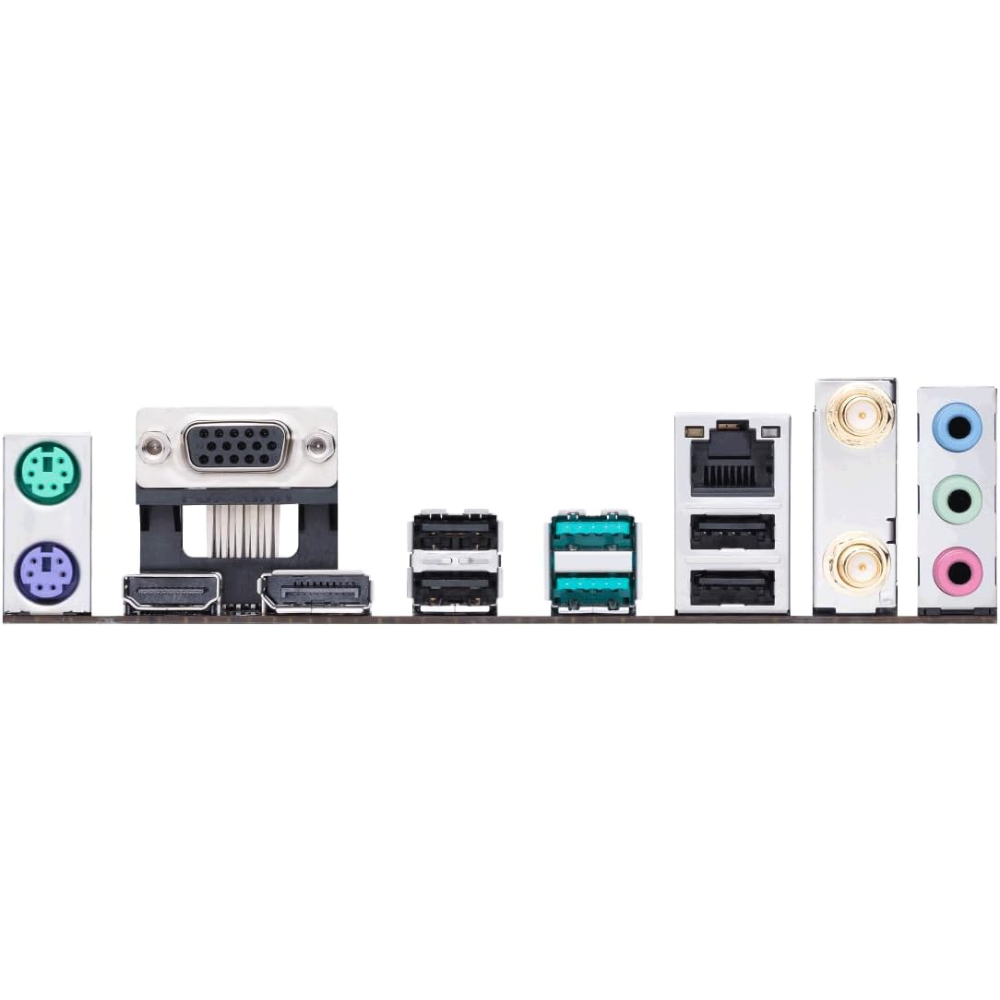

• USB Ports:

  • Rear USB Ports:

    • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
    • 4 x USB 2.0 ports (4 x Type-A)


  • Front USB Ports:

    • 1 x USB 3.2 Gen 1 supports additional 2 USB 3.2 Gen 1 ports
    • 2 x USB 2.0 support additional 3 USB 2.0 ports

• Audio: Realtek 7.1-Channel High Definition Audio

• Display Outputs:


  • 1 x DisplayPort
  • 1 x D-Sub port
  • 1 x HDMI port

Key Features:

• DDR4 Memory Support: Compatible with a wide range of DDR4 modules for cost-effective performance.

• Integrated Wi-Fi 5 & Bluetooth 5.0: Wireless connectivity without the need for additional adapters.

• Dual M.2 Slots: Supports fast NVMe SSDs for quick boot and load times.

• Comprehensive Cooling: VRM and PCH heatsinks with Fan Xpert 2+ for optimized thermal performance.

• ASUS 5X Protection III: Includes DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, and stainless-steel back I/O for enhanced durability.

• Customizable RGB Support: Aura Sync with addressable Gen 2 headers for personalized lighting effects.

• User-Friendly Design: Features Q-DIMM, Q-LED Core, and Q-Slot for simplified installation and troubleshooting.
