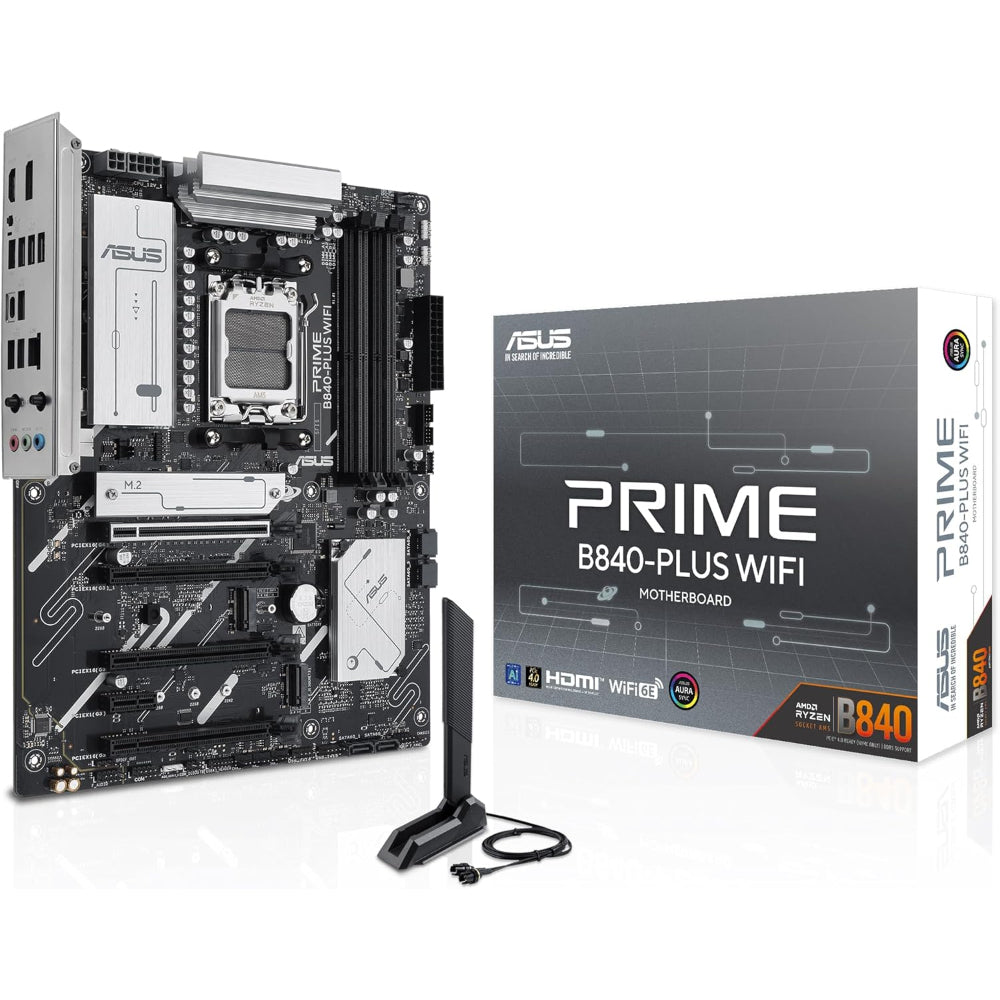

Asus PRIME B840-PLUS Wi-Fi 6E Motherboard, AM5 Socket, DDR5 Memory

Asus PRIME B840-PLUS Wi-Fi 6E is a micro-ATX motherboard designed for AMD AM5 socket, supporting Ryzen Series 9000, 8000, and 7000 Desktop Processors. It offers a robust feature set tailored for both enthusiasts and professionals seeking high performance and advanced connectivity.

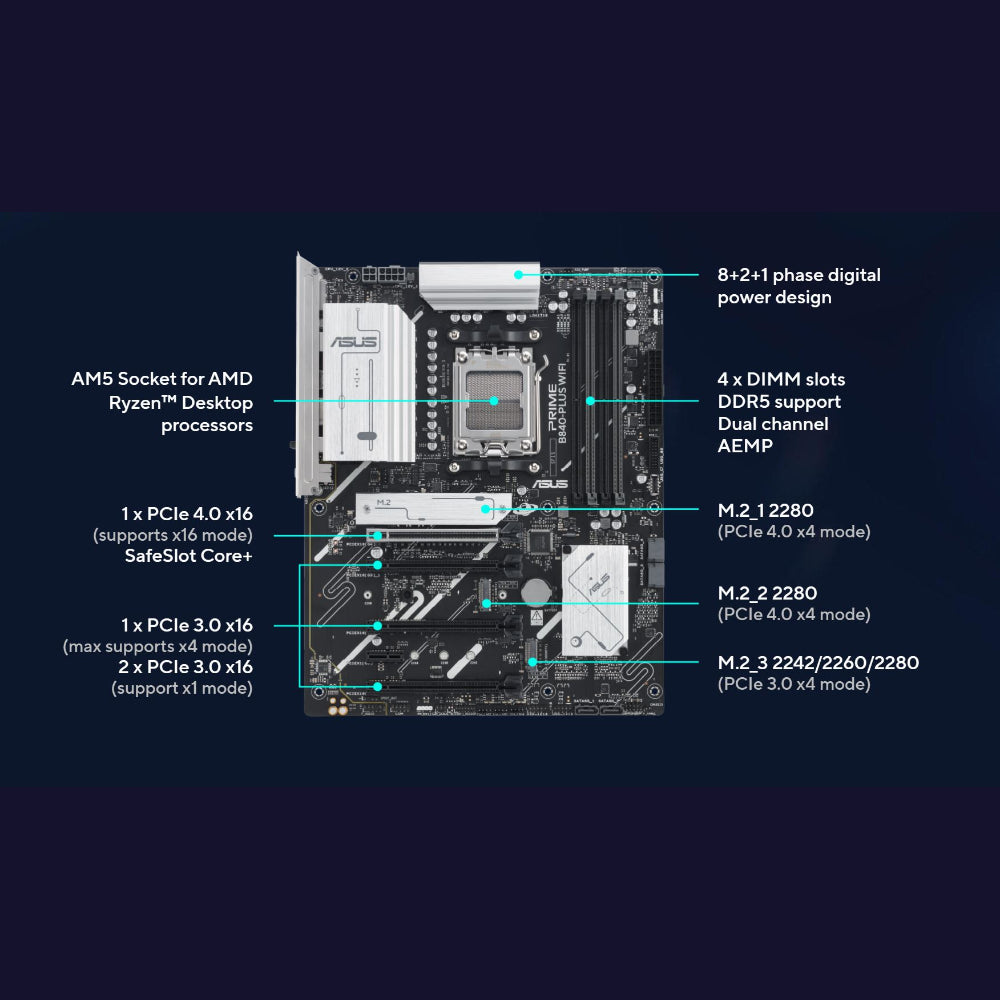

Key Specifications:

• CPU Support: AMD Ryzen Series 9000, 8000, and 7000 Desktop Processors.

• Chipset: AMD B840.

• Memory Support: Four DDR5 DIMM slots, supporting up to 256GB of system memory with speeds up to +7600 MT/s (OC).

• Storage Options:

  • Three M.2 slots:

    • 2 x PCIe 4.0

    • 1 x PCIe 3.0

  • 4 x SATA 6Gb/s ports.

• Networking:

  • Realtek 2.5Gb Ethernet.

  • Wi-Fi 6E (802.11ax) with ASUS Wi-Fi Q-Antenna.

• USB Ports:

  • Rear USB:

    • 2 × USB 10Gbps ports (2 x Type-A)

    • 1 × USB 5Gbps port (1 x USB Type-C)

    • 4 × USB 2.0 ports (4 x Type-A)

  • Front USB:

    • 1 × USB 5Gbps connector (supports USB Type-C)

    • 1 × USB 5Gbps header supports 2 additional USB 5Gbps ports

    • 2 × USB 2.0 headers support 4 additional USB 2.0 ports

• Display Outputs:

  • 1 x DisplayPort.

  • 1 x HDMI port.

• Audio: High-definition audio with Realtek codec and premium audio capacitors.

Key Features:

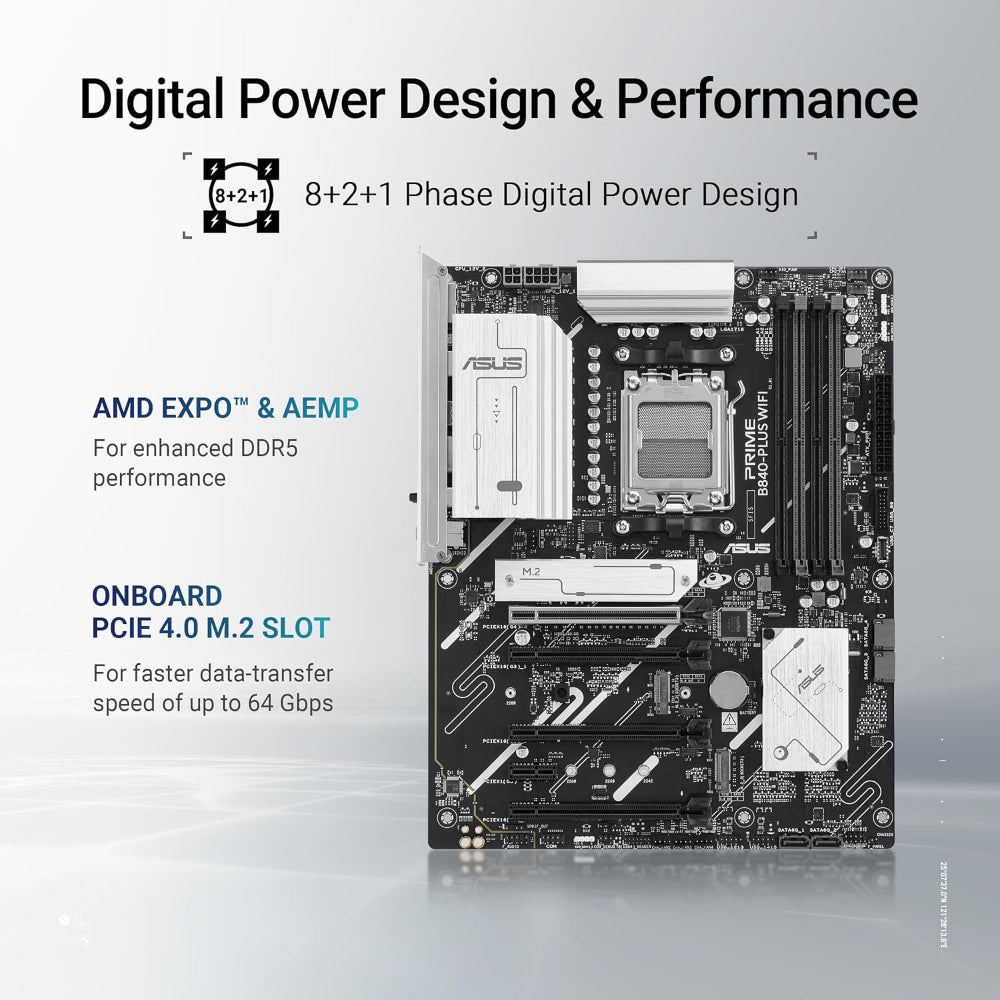

• Enhanced DDR5 Performance: Comprehensive memory tuning options maximize the potential of DDR5 modules, with support for AMD Extended Profiles for Overclocking (EXPO) and ASUS Enhanced Memory Profile (AEMP) for optimized performance.

• Three M.2 Slots: Offers a total of three M.2 slots, including two that support data-transfer via PCIe 4.0, and one that supports PCIe 3.0, enabling quicker boot-up and app load times.

• Comprehensive Cooling: Engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure the system stays cool and stable under intense workloads.

• DIY-Friendly Design: Incorporates features like Q-Antenna for easy Wi-Fi antenna installation, Q-LED Core for troubleshooting, BIOS FlashBack for simplified BIOS updates, and SafeSlot Core+ for enhanced PCIe slot durability.
