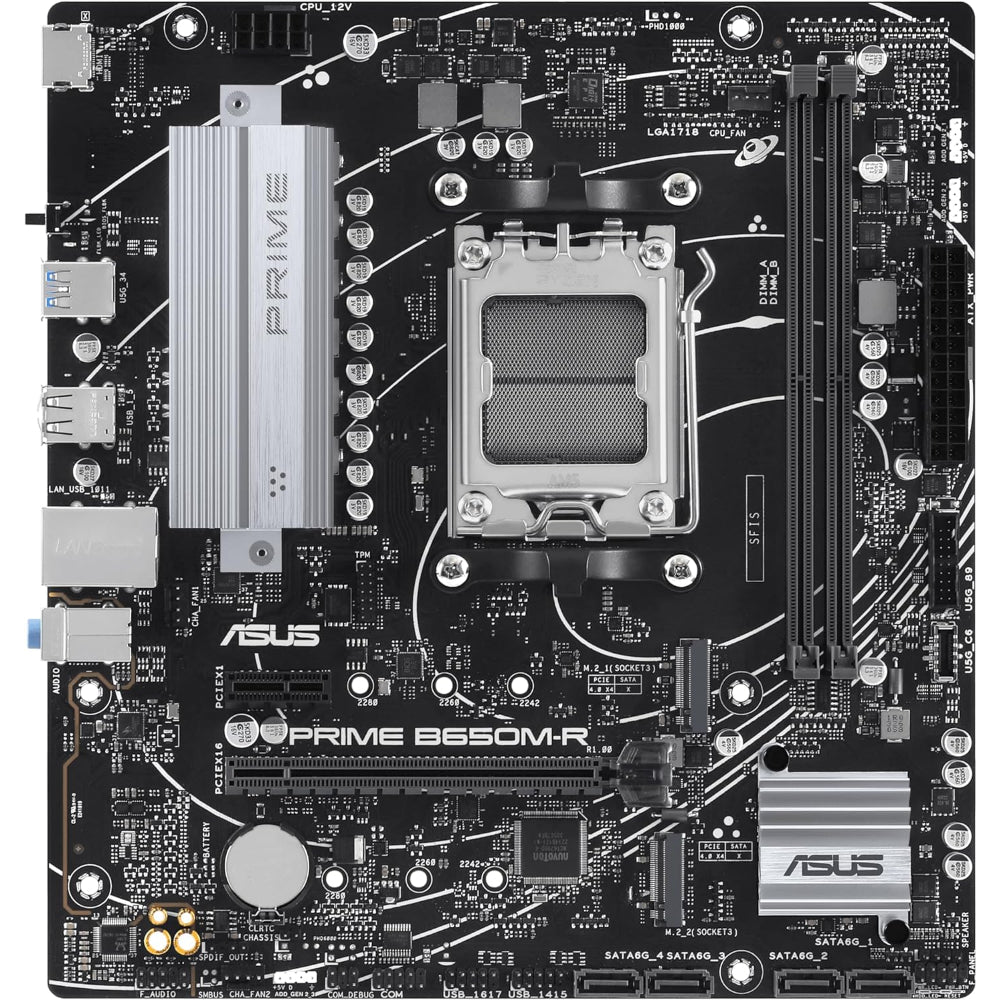

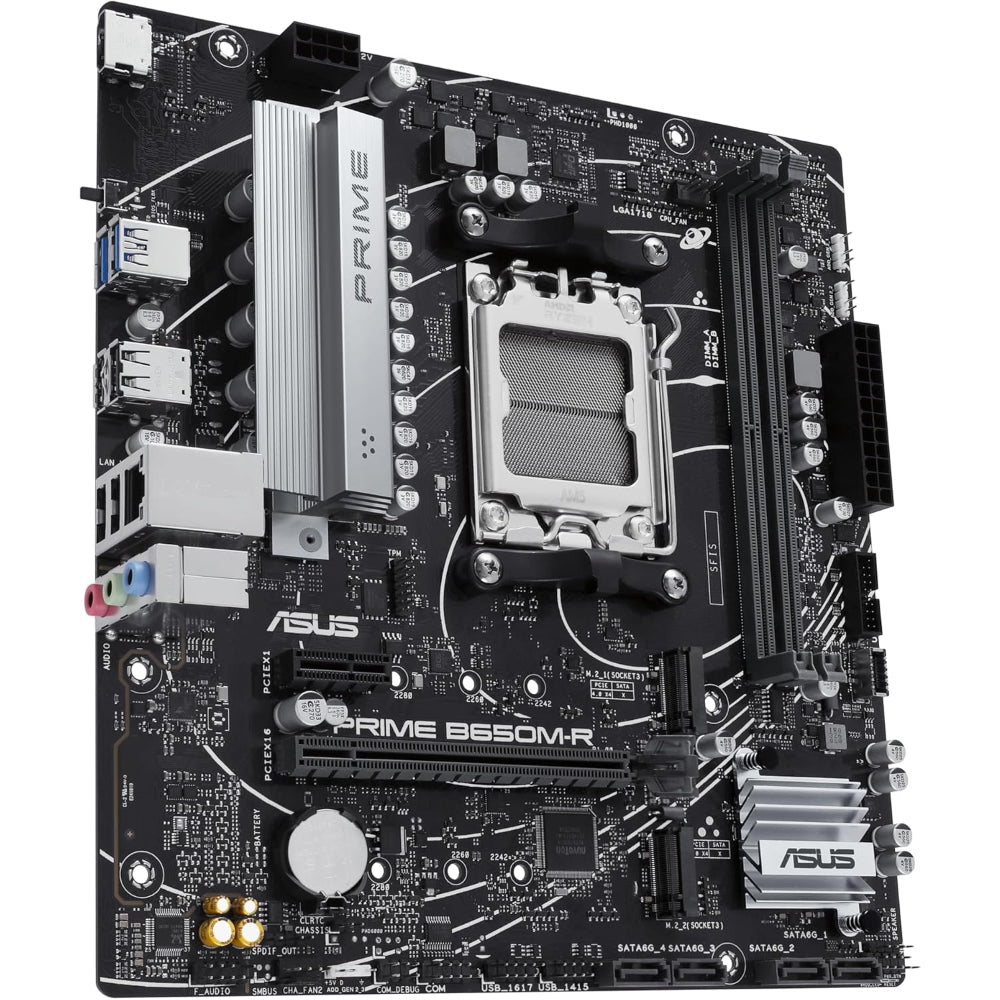

Asus PRIME B650M-R Motherboard, AM5 Socket, DDR5 Memory

ASUS PRIME B650M-R is a Micro-ATX motherboard designed for AMD Ryzen 9000, 8000, 7000 Series Processors, utilizing the AM5 socket. It offers a balance of performance and features, including DDR5 memory support, PCIe 4.0 expansion, and a robust power delivery system, making it suitable for mainstream users and budget-conscious builders.

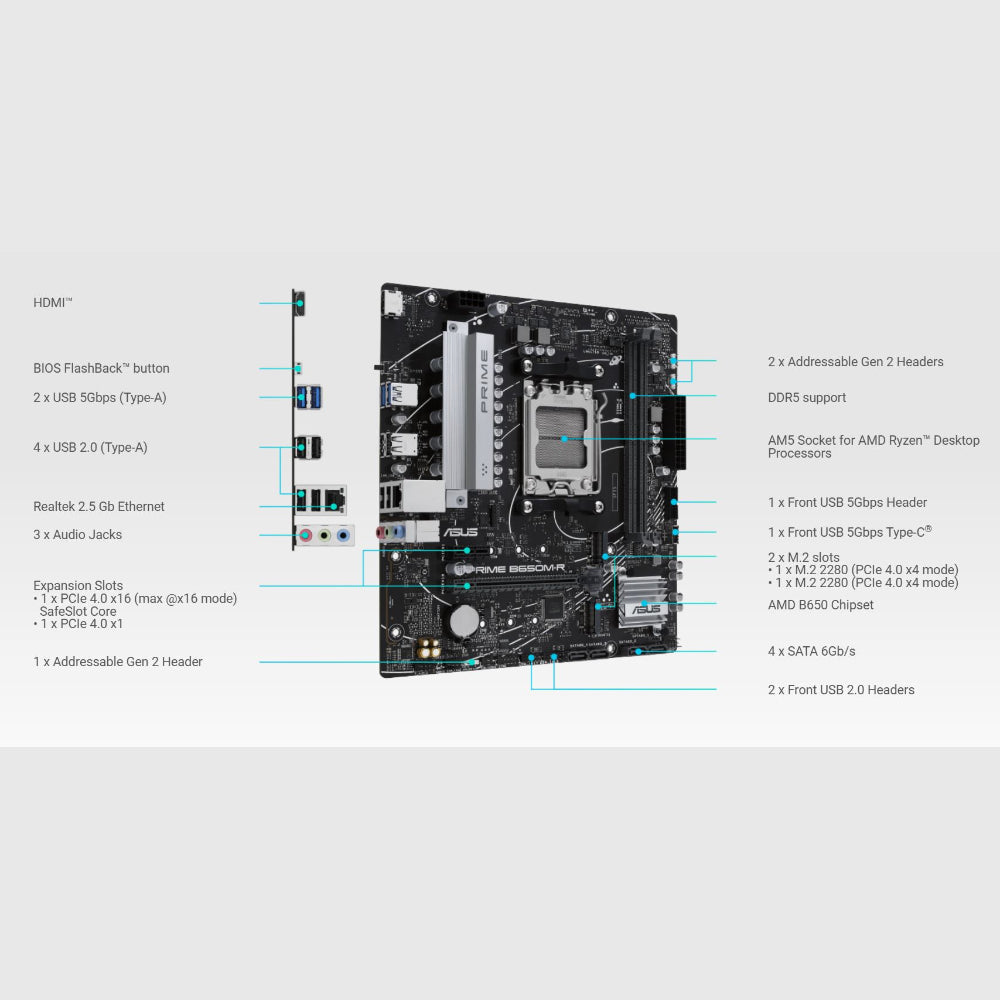

Key Specifications:

• Socket: AM5

• Form Factor: Micro-ATX

• Chipset: AMD B650

• Memory Support:

  • 2 x DDR5 DIMM slots

  • Up to 96GB RAM capacity

  • Supports DDR5 speeds up to 7200 MHz (OC)

• Storage Support:

  • 2 x M.2 slots (PCIe 4.0)

  • 4 x SATA 6Gb/s ports

• Networking:

  • Realtek 2.5Gb Ethernet

• USB Ports:

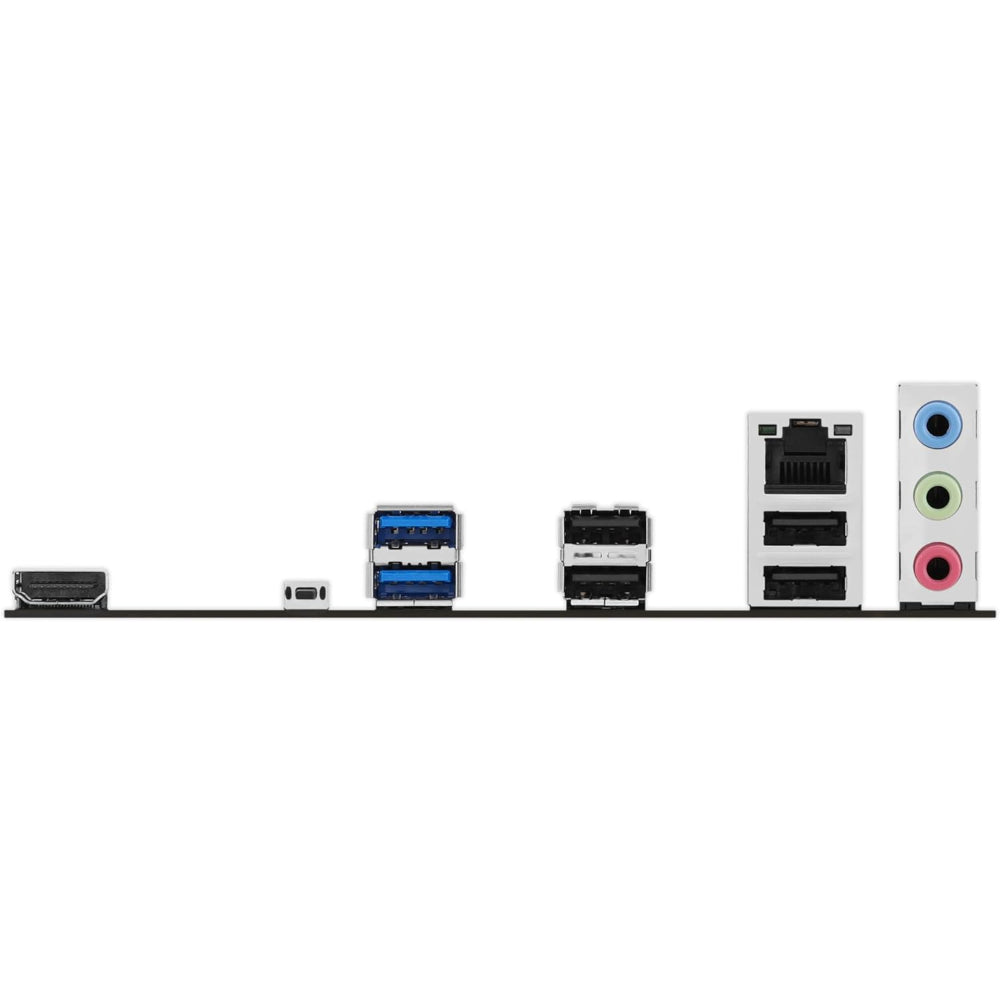

  • Rear USB Ports:

    • 2 x USB 5Gbps ports (2 x Type-A)

    • 4 x USB 2.0 ports (4 x Type-A)

  • Front USB Ports:

    • 1 x USB 5Gbps (supports USB Type-C)

    • 1 x USB 5Gbps supports 2 additional USB 5Gbps ports

    • 2 x USB 2.0 support 4 additional USB 2.0 ports

• Audio: Realtek 7.1 Surround Sound High Definition Audio

• Display Outputs: 1 x HDMI port

Key Features:

• Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ for optimal thermal performance.

• BIOS FlashBack: Update BIOS without CPU or memory installed.

• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware.

• Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.
